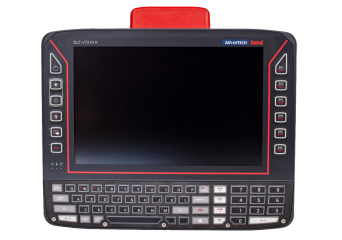

DLT-V7210 K/KD

Terminal VMT 10" with integrated keyboard / Windows or Android

Manufacturer: Advantech

Intel® Atom™ E3845 quad-core, 1.91 GHz, with 4 GB RAM
10.1" widescreen WXGA color TFT display with 1280 x 800 resolution and 500 cd/m² brightness
Abrasion-resistant PCT touchscreen with defroster (KD version), ideal for cold storage applications
Superior wireless connectivity and roaming capabilities
Full IP65 rating for water and dust resistance, and 5M3 certification for shock and vibration tolerance
Wide operating temperature range (-30 ~ 50 °C/-22 ~ 122 °F)
Integrated keyboard for convenient data input and wide key spacing to prevent keyboard from icing
Optional uninterruptible power supply
Certified with SOTI, Navis N4.3.6

Product out of stock

Free shipping from €300

See 1 model

Promocja cenowa na model HDR-15-5

Models
Description
Technical Specification
Download
Recommended Products

DLT-V7210 K/KD

Models

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
DLT-V7210KF-BTO Fully rugged Vehicle-Mounted Terminal	Out of stock	Warranty:		€0.00 -	-

DLT-V7210KF-BTO

Fully rugged Vehicle-Mounted Terminal

Availability: Out of stock

Net price:

Description

DLT-V7210 K is a rugged vehicle-mounted terminal with integrated keyboard designed for logistics applications and to provide maximum system uptime. Powered by an Intel®Atom™ E3845 quad-core, 1.91 GHz, processor with 4 GB RAM, DLT-V7210 K supports a wide operating temperature range (-30 ~ 50 °C/-22 ~ 122 °F) to withstand operation in extreme industrial environments. The low-profile antenna offers excellent transmission capabilities in a compact form factor. Furthermore, the integrated user-friendly keyboard offers convenient operation and efficient data input. Meanwhile, the 10.1" widescreen WXGA color TFT display with flexible touch control ensures easy input and reduces input failures.

DLT-V7210 KD is a rugged vehicle-mounted terminal with integrated keyboard designed for logistics applications and to provide convenient operation and efficient data input. The 10.1" widescreen WXGA color TFT display with PCT touchscreen can be also equipped with defroster, which is ideal for cold chain and cold storage applications. Designed for industrial applications, DLT-V7210 KD is 5M3 certified for shock and vibration tolerance, IP65-rated for water and dust resistance, and built with an IK08-certified touchscreen for high durability.

Technical Specification

Touch screen	Sunlight readable projective capacitive touch screen (PCT) Multi-touch, touch sensitivity via Config Tool adjustable
Communication	Wi-Fi IEEE 802.11 a/b/g/n; optional Ethernet 10/100/1000 Mbit/s Bluetooth, optional
Power Supply (internal)	12/24/48 VDC, nominal voltages Automatic switch-on, switch-off function via vehicle ignition UPS, optional (typically 20 min); battery-lifetime may vary depending on use case
Environment	IP65 protection class Relative humidity 10 to 90 % @ 40 °C, non condensing Shock/ vibration: class 5M3 according to EN 60721-3-5, MIL-STD 810F (US Highway Truck) Operating temperature: -30 bis +50 °C (-22°F to +122°F) Shock and resistance touchscreen: IK 08
CPU	Intel® Atom™ E 3827 Quad Core, 1.91 GHz with 4 GB RAM
Operating system	MS Windows® 10 IoT Enterprise, MS Windows® 7 Professional MS Windows® Embedded 8.1 Industry Pro, WES7, WE8S Linux Debian-based, IGEL Linux Android 7.1.2
