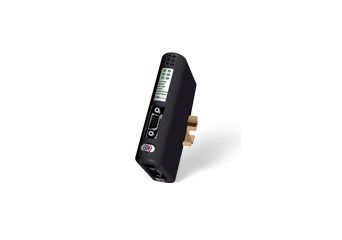

Anybus X-gateway CANopen Master CANopen Slave
Price from €1,031.00 Net price
High price? Log in and buy cheaper
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use onlyModels
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddAB7304CANopen Master - CANopen SlaveOut of stock Warranty: €1,031.00€1,268.13Login to check your price AB7304CANopen Master - CANopen SlaveAvailability: Out of stockNet price:€1,031.00
Technical Specification
- Dane techniczne
| Size: | 127 mm x 75 mm x 27 mm |
| Power Supply: | 24 VDC |
| Temperature: | -25-55°C |
| Current Consump: | max 150 mA |
| Baud Rate: | 20 kbit/s - 1 Mbit/s, Auto baud rate detection |
| I/O Input: | 510 bytes |
| I/O Output: | 510 bytes |
| Config Method: | External CANopen Configuration Manager (CCM) |
| Certification: | Certified by CAN in Automation (CIA) |
| CANopen Connector: | D-sub 9-pin female |
| CANopen address: | 1-99 |
| CANopen baud rate: | 10 kbit/sec-1 Mbit/s |
| USB-CAN dongle: | 021370 (order code for USB to CAN dongle incl. CD with CCM software and manuals) |
| Order Code: | AB7304 |
