Manufacturer: Anybus
- Fast copying of cyclic I/O data between a CANopen and Modbus RTU network (5 ms)
- Fulll CANopen Master/Manager functionality, eliminates the need for an PLC controller on the CANopen network
- Connects up to 126 CANopen slave devices
- Proven and tested with all PLC manufacturers
- Easy CANopen configuration via the included Anybus Configuration Manager software. No programming required
- Robust stand-alone housing for use in harsh industrial environments
- Global free technical support and consultancy
Price from €903.00 Net price
High price? Log in and buy cheaper
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use onlyModels
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddAB7305CANopen Master - Modbus RTU SlaveOut of stock Warranty: €903.00€1,110.69Login to check your price AB7305CANopen Master - Modbus RTU SlaveAvailability: Out of stockNet price:€903.00
Description

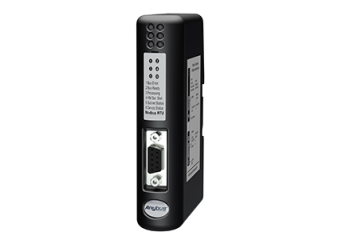

The Anybus X-gateway CANopen provides a seamless connection between a Modbus RTU network and a secondary CANopen sub-network. This makes it possible to integrate CANopen devices into a Modbus RTU PLC system.
FAST COPYING OF I/O DATA
The X-gateway's primary function is fast transfer of cyclic I/O data between the two networks. I/O data from the Modbus RTU network is written into CANopen objects that can be mapped into CANopen PDOs and vice versa. The gateway acts as a full Master/Manager on the CANopen network and as a Slave on the Modbus RTU network. The data transmission between the two networks is completely transparent with a maximum data capacity of 510 bytes in each direction.
EASY CONFIGURATION - NO PROGRAMMING REQUIRED!
CANopen configuration can easily be made through the included Anybus Configuration Manager CANopen software, or with any other standard CANopen configuration tool. No programming skills are needed.
Technical Specification
| Dimensions | 120 mm x 75 mm x 27 mm |
| Weight | 150g |
| Operating temperature | -25 to 55°C |
| Power supply | 24 DC |
| Current consumption | typical150 mA |
| Configuration port | USB (USB to CAN cable not included) |
| Configuration switches | On-board for CANopen node address and baud rate setting |
| CANopen connector | D-sub 9 Male (Included) |
| Galvanic isolation | On both CAN and BUS/Ethernet side |
| Mechanical rating | IP20, NEMA rating 1 |
| Mounting | DIN-rail (EN 50022 standard) |
| CANopen baudrate | 20 kbit/s - 1 Mbit/s |
| Order Code | AB7305 |
