Model | Availability | Warranty | Wishlist | Your Price | Your Price | Items Quantity Add |
---|---|---|---|---|---|---|

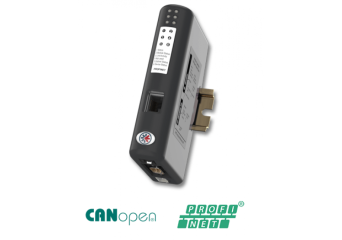

AB7307 CANopen Master - Profinet IO Slave | Out of stock | Warranty: | €1,221.00 €1,501.83 | Login to check your price |
Size: | 127 mm x 75 mm x 27 mm |
Power Supply: | 24 VDC |
Temperature: | -25-55°C |
Current Consump: | max 150 mA |
Baud Rate: | 20 kbit/s - 1 Mbit/s, Auto baud rate detection |
I/O Input: | 510 bytes |
I/O Output: | 510 bytes |
Config Method: | External CANopen Configuration Manager (CCM) |
Certification: | Certified by CAN in Automation (CIA) |
Profinet: | Real-time and IT functions |
Profinet baud rate: | 100 Mbit/s |
Profinet connector: | RJ45 |
USB-CAN dongle: | 021370 (order code for USB to CAN dongle incl. CD with CCM software and manuals) |
Order Code: | AB7307 |
