AB7503

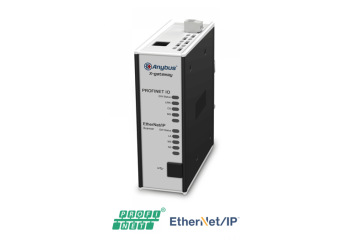

Anybus X-gateway EtherNet/IP Master PROFINET-IRT Slave
Price from €1,128.00 Net price
High price? Log in and buy cheaper
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use onlyModels
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddAB7503EtherNet/IP Master-PROFINET IRT SlaveOut of stock Warranty: €1,128.00€1,387.44Login to check your price AB7503EtherNet/IP Master-PROFINET IRT SlaveAvailability: Out of stockNet price:€1,128.00
Technical Specification
- Specyfikacja PROFINET-IRT Device
| Obsługiwane protokoły: | PROFINET RT oraz IRT (functionality specification 2.3), SNMP-MIBII, LLDP, I&M |
| Rozmiar pamięci: | max. 220 bajtów Input oraz 220 bajtów Output |
| Klasy: | A, B oraz C |
| Prędkość transmisji: | 10/100Mbit/s, asynchroniczny cykl 0,25 - 4 ms |
- Specyfikacja Ethernet/IP Scanner/Master
| Obsługiwane protokoły |
|
| Input/Output | do 509 bajtów Input + do 505 bajtów Output |
| Liczba obsługiwanych urządzeń Slave: | do 64 |
| Prędkość transmisji: |
|
- Specyfikacja techniczna
| Rozmiar: | 114 mm x 127 mm x 44 mm |
| Zasilanie: | 24 VDC (+/- 20%) |
| Temperatura pracy: | -25°C - +65°C |
| Pobór prądu: | max 400 mA |
| Stopień ochrony: | IP20/Nema1 |
| Certyfikaty: | CE, CULUS, ATEX/Haz.Loc, RoHS |
| Izolacja galwaniczna: | Tak, po obu stronach sieci |
