ABC4017 PROFINET IO-Device - Modbus TCP server
Price from €948.00 Net price
If placed an order by 3 p.m., the package will be shipped the same day In stock
Price from €1,120.00 Net price
High price? Log in and buy cheaper
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use onlyModels
-

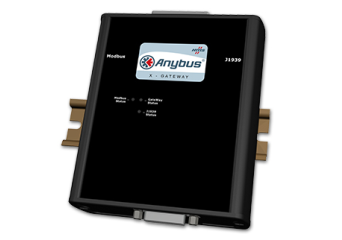

Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddAB7612Modbus RTU Slave - J1939Out of stock Warranty: €1,120.00€1,377.60Login to check your price AB7612Modbus RTU Slave - J1939Availability: Out of stockNet price:€1,120.00
Description
Technical Specification
- Specyfikacja techniczna
| Wymiary | 114 x 44 x 127mm |
| Waga |
400g |
| Zasilanie | 24 VDC +/- 20% via 2-pole 5.08 mm Phoenix pluggable screw connector |
| Temperatura pracy | -25 to +65 °C |
| Temperatura przechowywania | -40 to +85 °C |
| Pobór prądu | max. 400mA (Typical 200mA) |
| Obudowa |
Aluminium and plastic |
| Pozycja instalcji | Vertical / Flat |
| Izolacja galwaniczna |
YES, on both BUS/Ethernet side |
| Ocena mechaniczna | IP20 / Nema 1 |
| Montaż |
DIN-rail (EN 50022 standard) |
| Konfiguracja I/O | via USB port with Anybus Configuration Manager software |
| Certyfikaty | CE, CULUS, RoHS |
Download
