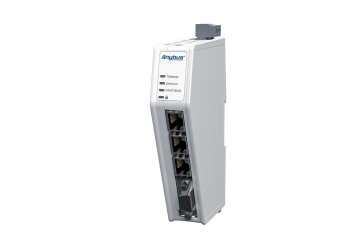

ABC3200 - Modbus TCP Client – Profibus Slave

Manufacturer: Anybus
Manufacturer: Anybus

ABC3200 - Modbus TCP Client – Profibus Slave

Price from €957.00 Net price

High price? Log in and buy cheaper

In stock

Place the order by 12:00, the package will be shipped on the same day

Free shipping from €300

See 1 model

Promocja cenowa na model HDR-15-5

Models

Description

The Anybus Communicator Modbus TCP Client to PROFIBUS enables you to connect Modbus TCP devices to PROFIBUS control systems. Anybus Communicators ensure reliable, secure, and high-speed data transfer between different industrial networks. Thanks to our intuitive web-based user interface, they're also incredibly easy to use.

High performance

Powered by the award-winning NP40 network processor, it enables instant transfer of up to 1500 bytes (network dependent) between networks, totaling 3000 bytes.

Instant data transfer

Instant data transfer lets you take advantage of high-speed industrial networks.

Endian conversion

The Communicator provides hardware-accelerated endian conversion (byte swap), saving processing time on the PLC.

Intuitive user interface

Use the intuitive web-based user interface to easily configure the Communicator via the drag-and-drop functionality or to analyze live data and generate support packages.

Cybersecurity

Despite advanced security, human error often causes breaches. Our Communicator’s physical security switch can lock configurations and block web interface access, enhancing security.

Optimized hardware design

The Communicator has forward-facing ports and is designed for IP20 and DIN-rail mounting, enabling you to install it with ease, close to connected devices, thereby reducing wiring requirements.

Diagnostics

The user interface displays real-time connection status and I/O data mapping for easy troubleshooting. Easily generate a support file containing all the necessary information.

5-year warranty

Thanks to carefully selected industrial components the Communicator operates reliably in harsh environments, ensuring uptime and longevity. Our confidence in quality is reflected in a 5-year warranty.

Life cycle management

HMS maintains every part of the Communicator, including network updates, throughout the product’s lifecycle.





Modbus TCP Client (master)

  • Transfer up to 1 500 bytes to and from Modbus TCP Client (3000 bytes total)

  • Connect up to 64 Modbus TCP Servers (slaves)

  • 10 ms Modbus TCP Client cycle time

  • Visual I/O configuration for data mapping (drag and drop)

  • Transfer data cyclically or on data change

  • Monitor and control Modbus TCP transactions from control system with Live list and Data exchange control

  • Control how data transfer is initiated with network start-up options

  • Handle control system (PLC) offline situations with freeze, pause and safe value options

  • Ability to import Anybus legacy configuration file (from Anybus AB9xxx series gateways)

  • Dual RJ45 Ethernet ports with 10/100 Mbit full duplex

  • Daisy chaining with integrated switch



PROFIBUS DP DEVICE FEATURES

  • PROFIBUS DPV1 & DPV0 Device (slave)
  • Transfer up to 244 bytes to and from PROFIBUS (488 bytes total)
  • Automatic baud rate detection up to 12 Mbit/s
  • PROFIBUS slave address setting via onboard rotary switches or web interface
  • Supports Sync and Freeze and Watchdog
  • Supports I&M 0-3
  • 1x D-sub 9-pin female PROFIBUS connector
  • GSD file available

Technical Specification

GENERAL

Dimensions (L x W x H) with serial and power connector 98 x 27 x 144 mm
3.85 x 1.06 x 5,67 in
Weight 150 grams, 0.33 lb
Buttons and switches Reset button and security switch
LEDs Gateway, Network 1 & Network 2
IP rating IP20
Housing material PC ABS, UL 94 VO
Mounting DIN rail (35 * 7,5/15)





ENVIRONMENT

Operating temperature -25 to 70° C, -13 to 158° F
Storage temperature -40 to 85° C, -40 to 185° F
Relative humidity 0-95% non condensing
Installation altitude Up to 2 000 m





POWER

Input voltage 12 - 30 VDC
Current consumption Typical: 90 mA @ 24V (2.2 W)
Power connector 3-pin plug with screw terminal
Protection Reverse voltage protection and short circuit protection





ETHERNET PORTS

Ports 2 x Ethernet ports per Ethernet protocol
Isolation Galvanic isolation
Bitrate 10/100 Mbit full duplex
Connector RJ45
Switch. Dual port cut-through switch





MODBUS TCP CLIENT
Mode Modbus TCP Client (Master)
Input data size 1500 bytes
Output data size 1500 bytes
Functions supported Read Coils, Read Discrete Inputs, Read Holding Registers, Read Input Registers, Write Single Coil, Write Single Register, Write Multiple Coils, Write Multiple Registers, Read/Write Multiple Registers
Max numbers of transactions 152
Minimum cycle time 10 ms
Max number of connections 64
Network start-up modes Directly, Wait for data
Offline options Freeze, pause or safe value
Live list Monitor up to 152 transactions from control system (PLC)
Data exchange control Control up to 152 transactions from control system (PLC)



PROFIBUS

Mode PROFIBUS DPV1 Device (slave)
Input data size 244 bytes
Output data size 244 bytes
Baude rate Automatic baud rate detection up to 12 Mbit/s
Rotary switches PROFIBUS slave address setting via onboard rotary switches or web interface
Features Supports Sync and Freeze and Watchdog
I&M records Manufacturer data (I&M0), Tag information (I&M1), Date/Time (I&M2), Description (I&M3)
Connector 1x D-sub 9-pin female PROFIBUS connector
GSD GSD file available

CERTIFICATIONS AND STANDARDS

UL CULUSfile number E214107
CE 2014/30/EU
KC R-R-ABJ-Communicator (Pending for EtherCAT MainDevice)
EMC

EN 61000-6-2
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-6-4
EN 55032

Environment

IEC 60068-2-1 Ab
IEC 60068-2-2 Bb
IEC 60068-2-1 Ab
IEC 60068-2-2 Bb
IEC 60068-2-14 Nb
IEC 60068-2-30 Db
IEC 60068-2-78 Cab
IEC 60068-2-78 Cab

Vibration and shock

IEC 60068-2-27
IEC 60068-2-6

Waste certification WEE





CONFIGURATION

Configuration software Web based configuration
Configuration ports Dedicated 10/100 Mbit RJ45 Ethernet configuration port and Ethernet ports





SECURITY

Secure boot Ensures software authenticity
Security switch Physical switch that enable/disable access to the web based configuration interface





PRODUCT PACKAGING

Content Gateway, power connector, start-up guide, compliance information sheet
Box material Cardboard



MEAN TIME BETWEEN FAILURE

MTBF > 1 500 000 h, Telcordia Method I Case 3 at 30° C
