High-speed cellular internet access
-
Secure LTE Cat-4 connectivity for 4G networks with 3G fallback.
-
Fast data transfer: Download up to 100 Mbit/s, Upload up to 50 Mbit/s.
-
Nano SIM-card slot. The user can use any locally available SIM-card supporting LTE 4G (LTE Cat-4).
-
Transparent transfer of any TCP/UDP based protocol, for example, MQTT and OPC UA.
All-in-one solution
-
PoE (Power over Ethernet) option, use a single cable for both power and communication.
-
Integrated dual antennas with MIMO support.
-
GNSS satellite positioning function (GPS, GLONASS, Galileo and BeiDou).
-
Built-in firewall, NAT, and DHCP server.
-
Host interface RJ45 with Ethernet.
Designed for industrial use & harsh environments
- Industrial internet router ideal for applications within automation, transportation, telematics, public safety, and industrial IoT.
-
Unique and industrial form-factor; M50 through-hole enables it to be mounted on any flat surface.
-
Easy to use and configure - use the built-in web page or CLI with REST-commands for configurations and diagnostics.
Price from €483.00 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
AWB1500 - Anybus Wireless Bolt LTE black
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddAWB1500Anybus Wireless Bolt LTE blackIn stockWarranty: €483.00€594.09Login to check your price AWB1500Anybus Wireless Bolt LTE blackAvailability:In stockNet price:€483.00
Accessories
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add024707Zasilacz 90-264 Vac na 24 VdcOut of stock Warranty: €64.00€78.72Login to check your price 024707Zasilacz 90-264 Vac na 24 VdcAvailability: Out of stockNet price:€64.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add024708Bolt Base ProtectorIn stockWarranty: €57.00€70.11Login to check your price 024708Bolt Base ProtectorAvailability:In stockNet price:€57.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add024709Bolt Base Protector and mount kitOut of stock Warranty: €96.00€118.08Login to check your price 024709Bolt Base Protector and mount kitAvailability: Out of stockNet price:€96.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddAnybus PoE Injector 12-57VDCOut of stock Warranty: €238.00€292.74Login to check your price Anybus PoE Injector 12-57VDCAvailability: Out of stockNet price:€238.00
Description

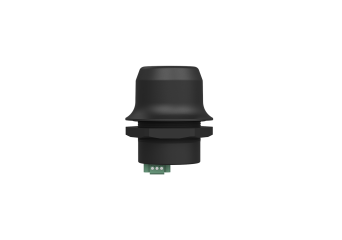

The Anybus Wireless Bolt LTE is an industrial grade router which provides high-speed transparent internet access to remote industrial machines via an LTE (4G) network with 3G fallback. This enables users to perform comprehensive remote monitoring and analysis targeting increased system uptime and reduced costly maintenance trips.
The robust IP66 and IP67-rated enclosure allows the Anybus Wireless Bolt LTE to be installed in the toughest of operating environments, and the wide temperature coverage (−40°C to 65°C) makes it suitable for outdoor applications.
The product can be powered through an Ethernet cable, i.e., Power over Ethernet, or via separate power terminals. Ethernet cables can be up to 100 meters long, enabling users to optimize the placement of Wireless Bolt LTE up to 100 meters from the connected industrial equipment.
As the rugged all-in-one solution can be installed in an exposed location, there is no need for an external antenna or antenna cable to the Wireless Bolt LTE. This has both financial and practical benefits, as external antennas can be expensive, fragile, and very sensitive to interference.
The Anybus Wireless Bolt LTE is packaged in an elegant and innovative form factor that blends in well, making it look like an integrated part of the installation.
Technical Specification
| Operating temperature |
Shadow Black and White version: -40 to 65°C |
| Storage temperature | -40 to 85 °C |
| Host interface. | RJ45 Ethernet 10/100 Mbit/s, PoE (Power over Ethernet) |
| Humidity compatibility |
EN 600068-2-78: Damp heat, 40 °C, 90% (non-condensing). |
| Vibration compatibility |
Sinusoidal vibration test according to IEC 60068-2-6:2007 and with extra severities |
| Dimensions |
Diameter: 68 mm. |
| Weight |
100g |
| Housing material | Top: Valox 357X(f1) PBT/PC. Suitable for outdoor use with respect to exposure to ultraviolet light, water exposure and immersion in accordance with UL 746C. Base: Celanex: XFR 6840 GF15. PBT glass reinforced plastic. |
| Protection class |
Top (outside of host): IP66 and IP67 / UL Type 4X |
| Mounting | M50 hole (50.5 mm hole diameter needed) |
| Power |
3-pin screw connector and PoE (Power over Ethernet) |
| Cellular standards, Bands |
EMEA: LTE B1, B3, B7, B8, B20, B28. Fallback 3G. |
| Data speeds |
Max download speed: 100 Mbit/s |
| Ethernet protocols | Transparent transfer of any TCP/UDP based protocol, Built-in firewall, NAT, and DHCP server. |
| Certifications |
CE/RED, FCC, PTCRB, UL/cUL (E214107) |
| Positioning | GNSS satellite positioning function (GPS, GLONASS, Galileo and BeiDou) |
