AWB7000 - Anybus Wireless Bolt 5G

Anybus Wireless Bolt 5G

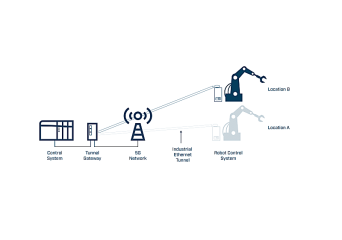

The Anybus Wireless Bolt 5G connects industrial devices and machines to 5G networks, enabling low latency, high throughput, and high reliability. Combined with the Anybus Tunnel Gateway, it enables communication on PROFINET, EtherNet/IP, or Modbus TCP networks over 5G. Its bolt-on form factor with IP67 protection facilitates versatile deployment.

Price from €1,393.00 Net price

High price? Log in and buy cheaper

Product out of stock

Free shipping from €300

See 1 model

Promocja cenowa na model HDR-15-5

Product intended for professional use only
AWB7000 - Anybus Wireless Bolt 5G

AWB7000 - Anybus Wireless Bolt 5G

Models

  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    AWB7000-A
    Anybus Wireless Bolt 5G
    Out of stock Warranty:
    €1,393.00
    €1,713.39
    Login to check your price
    AWB7000-A
    Anybus Wireless Bolt 5G
    Availability: Out of stock
    Net price:
    €1,393.00

Description

This advancement is crucial as it allows a 5G network to be integrated into existing installations, replacing parts of the network with a wireless 5G solution without changing existing IP addresses. This is particularly important for many applications where reprogramming PLCs and controlled devices is not feasible.

Introducing the Anybus Wireless Bolt 5G

The Anybus Wireless Bolt 5G is designed to connect industrial networks over 5G effortlessly, offering low latency, high throughput, and high reliability. Its unique bolt-on form factor, pre-directed antennas, IP67 protection, and minimal in-cabinet footprint make it ideal for deployment across new and existing equipment.

With the Anybus Wireless Bolt 5G, manufacturers of industrial devices and machines can integrate cutting-edge 5G technology into their products. This not only enhances their product offerings but also positions them well for the future as 5G becomes more prevalent in industrial settings.

Why Choose Anybus Wireless Bolt 5G?

  • Support for Industrial Ethernet networks including EtherNet/IP (including CIP Safety), PROFINET (including PROFI SAFE), Modbus TCP as well as all TCP and UDP-based communication.
  • User-Friendly Design: The Anybus Wireless Bolt 5G is built for ease of use, making it accessible and straightforward to implement.
  • Tailored for Industrial Use: Unlike solutions that aim to serve multiple markets, our focus is on industrial applications, ensuring that our product meets the specific needs of this sector.

While 5G capabilities are still emerging in many factories, the potential benefits are immense. By partnering with HMS Networks, manufacturers can stay ahead of the curve, offering their customers a reliable and future-proof 5G solution.



Features and benefits

  • Intuitive user interface

    Use the intuitive web-based user interface to easily configure the Communicator via the drag-and-drop functionality or to analyze live data, export log files, and generate support packages.

  • Cybersecurity

    The secure boot protects against malware, while a security switch locks configurations to prevent unauthorized changes. Ports used in production are disabled to add another layer of security.

  • High performance

    Powered by the award-winning NP40 network processor and high-end components, the Communicator meets the constantly growing demand for more data to be transferred faster.

  • Optimized hardware design

    The Communicator has forward-facing ports and is designed for IP20 and DIN-rail mounting, enabling you to install it with ease, close to connected devices, thereby reducing wiring requirements.

  • Instant data transfer

    Instant data transfer lets you take advantage of high-speed industrial networks, as the Communicator provides hardware-accelerated endian conversion (byte swap), saving processing time on the PLC.

  • 5-year warranty

    Thanks to carefully selected industrial components the Communicator operates reliably in harsh environments, ensuring uptime and longevity. Our confidence in quality is reflected in a 5-year warranty.

  • Instant diagnostics

    The user interface displays real-time connection status and I/O data mapping for easy troubleshooting. Easily generate a support file containing all the necessary information.

  • Brand Labeling

    Pre-configure the Communicator and customize the hardware and user interface with your colors and logos.

  • Life cycle management

    HMS maintains every part of the Communicator, including network updates, throughout the product’s lifecycle.

Technical Specification

Identification & Status

Brand Anybus
Country of Origin Sweden
Dual Usage No
ECCN 5A992.c
Model Code NV200
Item Number AWB7000-A
HS Code 8517620000



Wireless Features

Cellular Standards 5G/4G multi-mode, 3GPP Rel.16 5G NSA and SA mode, LTE DL Cat 16/UL Cat 18
Frequencies & Bands 5G NR: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79
LTE-FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71
LTE-TDD: B34, B38, B39, B40, B41, B42, B43, B48
LAA: B46
WCDMA: B1, B2, B4, B5, B8, B19



Certifications & Standards

CE Yes
UL No
ATEX No
RED Yes
FCC Yes
Environment EN 301 489-1 V2.2.3, EN 301 489-52 V1.2.1, EN 61000-4-2:2009, EN 61000-4-3:2006 + A1:2008 + A2:2010, EN 61000-4-4:2012, EN 61000-4-5:2014 + A1:2017, EN 61000-4-6:2014, EN 55032:2015 + AC:2016 + A11:2020 + A1:2020
Vibration and Shock Sinusoidal vibration test according to IEC 60068-2-6:2007 with extra severities. 3 axes (X:Y:Z), 10 sweep cycles per axis, 1 oct/min, in operation, 5–500 Hz, ±0.35 mm, 5g. Shock: IEC 60068-2-27:2008, half sine, ±3 shocks per axis, 30 m/s², 11 ms duration.
WEEE Category IT and telecommunications equipment
Protection Class IP IP67



General

Net Weight 300 g
Input Voltage 24 VDC (9 to 30 VDC)
Power over Ethernet (PoE) Yes
Operating Temperature -40 °C to 70 °C
Storage Temperature -40 °C to 85 °C
Housing Materials Aluminium, Plastic
Packaging Material Cardboard
Warranty 3 years
Configuration Web based configuration interface
Packed Dimensions (WxHxD) 120 x 20 x 80 mm
Packed Weight 350 g



Physical Features

Contains Battery No
Connectors / Input / Output RJ45, 18-pin terminal connector
