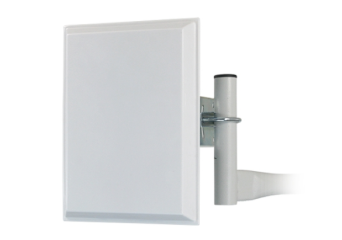

LineEter 16dBi
PAN 24-16 HV is the dual polarity client antenna, designed for operation at the frequency of 2,4 GHz
- Dual polarity client antenna
- Gain 16 dBi
- Frequency range 2,4 GHz
- Connector 1x N/Female
- Mounting to mast
High price? Log in and buy cheaper
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
LineEter 16dBi
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLineEter 16dBi (203)directional 2.4GHz, 16dbi, N femaleIn stockWarranty: €27.00€33.21Login to check your price LineEter 16dBi (203)directional 2.4GHz, 16dbi, N femaleAvailability:In stockNet price:€27.00
Description
The flat panel PAN 24-16 antenna works at the 2,4 GHz frequency and offers 16 dBi gain. Antenna radome is constructed of the high quality ABS material, which protect it against severe weather conditions and solar radiation. There is used microwave PCB technology, which gives incomparable high gain in comparison with its dimensions. PAN 24-16 antenna is predicted to be used in client installations. Can cover the area up to 4-5km with the angle of 30 degrees. PAN 24-16 can work in the horizontal or vertical polarization, depending on antenna settings. The antenna comes N Female connector in standard. The PAN 24-16 antenna system is equipped with the stainless bracket, which offer the tilt of 15 degrees.
Technical Specification
| Antenna type | directional panel |
| Frequency range | 2,4 - 2,5 GHz |
| Gain | 16 dBi |
| Polarization | vertical or horizontal |
| Vertical beam width | 23 ° |
| Horizontal beam width | 28 ° |
| VSWR | 1 : 1,5 |
| Impedance | 50 Ohm |
| Connector | N/Female |
| Wind load | 56 m/s |
| Mounting | pole mounting |
| The diameter of the mast / pole | 30 - 50 mm |
| Package dimension | 28/21/9 cm |
| Total weight | 836 g |
| Weight with mounting | 700 g |
| Weight without mounting | 350 g |
| Warranty | 36 months |
