Manufacturer: Cyberbajt
- Core diameter 50/125 µm, length from 1 meter
- 50/125 multimode optical fiber (OM2)

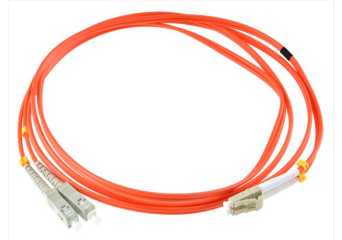

- Ready fiber optic cable with terminated LC-SC connectors
- PC (Physical Contac) connectors
Price from €6.00 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
MM LC-SC
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddC-LCSC50DOR1patchcord: LC/SC; MM; 1m; duplex CyberbajtOut of stock Warranty: €6.00€7.38Login to check your price C-LCSC50DOR1patchcord: LC/SC; MM; 1m; duplex CyberbajtAvailability: Out of stockNet price:€6.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddC-LCSC50DOR2patchcord: LC/SC; MM; 2m; duplex CyberbajtIn stockWarranty: €6.00€7.38Login to check your price C-LCSC50DOR2patchcord: LC/SC; MM; 2m; duplex CyberbajtAvailability:In stockNet price:€6.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddC-LCSC50DOR3patchcord: LC/SC; MM; 3m; duplex CyberbajtIn stockWarranty: €7.00€8.61Login to check your price C-LCSC50DOR3patchcord: LC/SC; MM; 3m; duplex CyberbajtAvailability:In stockNet price:€7.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddC-LCSC50DOR5patchcord: LC/SC; MM; 5m; duplex CyberbajtIn stockWarranty: €7.00€8.61Login to check your price C-LCSC50DOR5patchcord: LC/SC; MM; 5m; duplex CyberbajtAvailability:In stockNet price:€7.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddC-LCSC50DOR10patchcord: LC/SC; MM; 10m; duplex CyberbajtOut of stock Warranty: €18.00€22.14Login to check your price C-LCSC50DOR10patchcord: LC/SC; MM; 10m; duplex CyberbajtAvailability: Out of stockNet price:€18.00
Description
In our offer we have fiber optic patchcords from two vendors
- FibreFab - availeble only from stock
- Cyberbajt - marked with "C" - at the beginning on the product name
Technical Specification
Cyberbajt
| Rodzaj patchcorda | wielomodowy |
| Typ transmisji światłowodowej | Duplex |
| Rodzaj złącz | SC-LC |
| Typ włókna | 50/125-OM2 |
| Tłumienność losowa wtyk-wtyk, maksymalna ILw-w= | <0,3 dB |
| Tłumienność losowa wtyk-wtyk, średnie ILw-w śr= | <0,2 dB |
| Reflektancja RL PC | >50 dB |
| Wytrzymałość włókna | >98.1 N |
| Element wzmacniający | Włókna aramidowe / włókna szklane |
| Temperatura pracy | od -40 do +85 °C |
FibreFab
Charakterystyka złącz
| IL Max/Master (Acceptance) | 0.30dB |
| Ave/Master | 0.15dB |
Charakterystyka kabla
| Cable Material | LSZH or PVC |
| Strength Member | Aramid |
| Crush (N) | 1000 |
| Operating Temperature (˚C) | -20 to 60 |
| Fire Specification | IEC 60332-1 / LSZH PVC-OFNR (UL) |
Charakterystyka włókna
| Attenuation (dB) / km | 2.8 @ 850nm / 0.8 @ 1300nm |
| Bandwidth OFL (MHz x km) | 500 @ 850nm / 500 @ 1300nm |
| Max Ethernet Transmittable Distance | Please refer to Fiber Comparison Chart |
