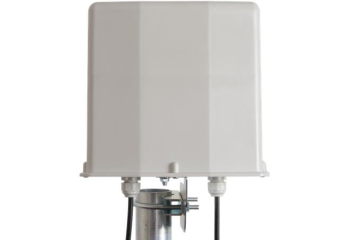

LTE MIMO panel, 5m H155 cable, SMA plug
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add10701LTE panel antenna with 5 m H155 SMA cableOut of stock Warranty: €40.00€49.20Login to check your price 10701LTE panel antenna with 5 m H155 SMA cableAvailability: Out of stockNet price:€40.00
Description
Directional 2x2 MIMO antenna with 5m H155 cables terminated with SMA plugs, designed for LTE transmissions. It is perfect for all GSM / LTE devices operating at frequencies from 699 to 2690 MHz.
Technical Specification
| Antenna type | Directional |
| frequency range | 0,699-2,690 GHz |
| Energy profit | 2 x 7 dBi |
| Polarization | elliptical |
| Radiation angle in the horizontal plane | 45 ° |
| VSWR | 1.5 (type) |
| Impedance | 50 Ohm |
| Ended with a wire | 500 cm |
| Connector | senior High School |
| Wind resistance | 56 m/s |
| Working temperature | -40 do 70 °C |
| Mast / handle diameter | 15 - 53 mm |
| Dimensions | 194x179x78 mm |
| Packaging dimension | 23/22/8 cm |
| Total weight | 700 g |
| Weight with handle | 600 g |
| Weight without handles | 400 g |
| guarantee | 36 m |
