SM ST-ST

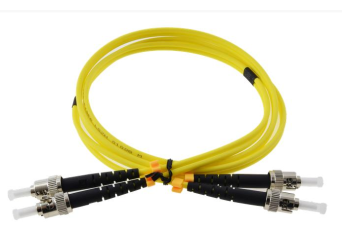

Singlemode patchcords with ST-ST connectors
- Core diameter 9/125 µm and length from 1 meter
- Ready fiber optic cable with terminated ST-ST connectors
- Connectors type PC (Physical Contac)
Price from €5.00 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
SM ST-ST
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddC-STST09DYE1patchcord: ST/ST; SM; 1m; duplex CyberbajtIn stockWarranty: €5.00€6.15Login to check your price C-STST09DYE1patchcord: ST/ST; SM; 1m; duplex CyberbajtAvailability:In stockNet price:€5.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddC-STST09DYE2patchcord: ST/ST; SM; 2m; duplex CyberbajtIn stockWarranty: €7.00€8.61Login to check your price C-STST09DYE2patchcord: ST/ST; SM; 2m; duplex CyberbajtAvailability:In stockNet price:€7.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddC-STST09DYE5patchcord: ST/ST; SM; 5m; duplex CyberbajtOut of stock Warranty: €6.00€7.38Login to check your price C-STST09DYE5patchcord: ST/ST; SM; 5m; duplex CyberbajtAvailability: Out of stockNet price:€6.00
Description
In our offer we have fiber optic patchcords from two vendors
- FibreFab - availeble only from stock
- Cyberbajt - marked with "C" - at the beginning on the product name
Technical Specification
Cyberbajt
| Rodzaj patchcorda | jednomodowy |
| Typ transmisji światłowodowej | Duplex |
| Rodzaj złącz | SC/PC-SC/PC |
| Typ włókna | G652D |
| Tłumienność losowa wtyk-wtyk, maksymalna ILw-w= | <0,3 dB |
| Tłumienność losowa wtyk-wtyk, średnie ILw-w śr= | <0,2 dB |
| Reflektancja RL PC | >50 dB |
| Wytrzymałość włókna | >98.1 N |
| Element wzmacniający | Włókna aramidowe / włókna szklane |
| Temperatura pracy | od -40 do +85 °C |
FibreFab
Charakterystyka złącz
- Charakterystyka złącz
| IL Max/Master (Acceptance) | 0.30dB |
| Ave/Master | 0.18dB |
| Ave/Random | 0.18dB |
| Return Loss | 50/60dB |
- Specyfikacja kabla
| Cable Material | LSZH or PVC |
| Strength Member | Aramid |
| Crush (N) | 1000 |
| Operating Temperature (˚C) | -20 to 60 |
| Fire Specification | IEC 60332-1 / IEC 60332-3 |
- Specyfikacja włókna
| Attenuation (dB) / km | 0.38 @ 1310nm / 0.25 @ 1550nm |
| Chromatic Dispersion (ps/nm x km) | 3.0 @ 1310nm / 18.0 @ 1550nm |
| Max Ethernet Transmittable Distance | Please refer to Fiber Comparison Chart |
