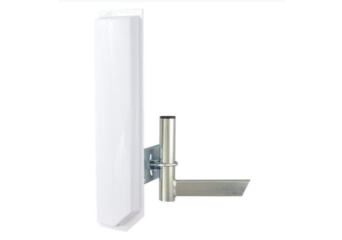

VH-Line Sektor Duo 14/120

Dual polarity sector antenna working at 2,4GHz frequency with the BOX integrated, 14 dBi, 120 degrees

Manufacturer: Cyberbajt
Manufacturer: Cyberbajt
  • Double sector antenna
  • Frequency range: 2,4 - 2,5 GHz
  • Gain: 14 dBi
  • Vertical + horizontal polarization
  • 2x2 MIMO
  • Connectors 2x N/Female
  • Mounting to mast
Price from €90.00 Net price

High price? Log in and buy cheaper

Product out of stock

Free shipping from €300

See 1 model

Promocja cenowa na model HDR-15-5

Models

  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    VH-Line Sektor Duo 14/120 (3679)
    Sector 120, 14dbi, MIMO 2x2, 2.4Ghz
    Out of stock Warranty:
    €90.00
    €110.70
    Login to check your price
    VH-Line Sektor Duo 14/120 (3679)
    Sector 120, 14dbi, MIMO 2x2, 2.4Ghz
    Availability: Out of stock
    Net price:
    €90.00

Description

Dual polarity sector antenna working at 2,4GHz frequency with the BOX integrated, enabling for installation of RouterBoard 411, 433, 711, Alix, Ubiquiti boards inside. Antenna has a gain of 14dBi and 120 degrees radiation beam-width at the horizontal polarization. It’s designed for operation with a radio equipment working at the 802.11n standard with the 2x2 MIMO technology. Works fine with client devices equipped with dual polarity antennas, allowing for improving the link quality and the SNR level and obtaining the transmission rate of 300Mbps, also in the localizations with low multi-path level. Due to high factor of separation between connectors (>35 dB) allows for dual base station 2,4 GHz building (at 802.11b/g standard).

Technical Specification

Antenna type double sector
Frequency range 2,4 - 2,5 GHz
Gain 14 dBi
Polarization vertical + horizontal
Separation between connectors >35 dB
Vertical beam width 17 ° for -3dB
Horizontal beam width 120 ° for -3dB
VSWR 1 : 1,4
Impedance 50 Ohm
Connector 2 x N/Female
Wind load 56 m/s
Mounting to mast
The diameter of the mast / pole 38 - 51 mm
Set content antenna, mounting brackets, manual
Dimensions 456 x 140 x 40 mm
Package dimension 60/13,5/11 cm
Total weight 1267 g
Weight with mounting 1080 g
Weight without mounting 682 g
Warranty 36 months
