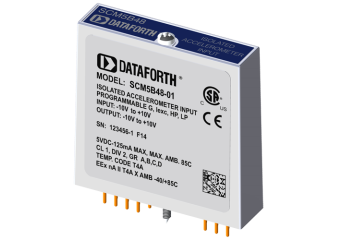

Seria SCM5B48

Accelerometer Input Module

Manufacturer: Dataforth
Manufacturer: Dataforth
  • Interfaces to ICP®* or IEPE* or LIVM* Sensors
  • ±10V Output Range
  • 1500Vrms Transformer Isolation
  • ANSI/IEEE C37.90.1 Transient Protection
  • Input Protection to 240Vrms Continuous
  • 1, 10, and 100 Programmable Gain
  • 2.5, 5, 10, and 20kHz Programmable LP Filter
  • 0.2 and 10Hz Programmable HP Filter
  • 4mA or 9mA Programmable Current Excitation
  • ±0.2% Accuracy
  • ±0.01% Linearity
  • Low Drift with Ambient Temperature
  • -40°C to +85°C Operating Temperature Range
  • CE Compliant, CSA and FM Approvals Pending
  • Mix and Match Module Types on Backpanel
Price from €465.00 Net price

High price? Log in and buy cheaper

Product out of stock

Free shipping from €300

See 1 model

Promocja cenowa na model HDR-15-5

Models

  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    SCM5B48-01
    Accelerometer Input Module,I:±10V,O:±10V
    Out of stock Warranty:
    €465.00
    €571.95
    Login to check your price
    SCM5B48-01
    Accelerometer Input Module,I:±10V,O:±10V
    Availability: Out of stock
    Net price:
    €465.00

Description

The SCM5B48 provides excitation to piezoelectric sensors with built-in microelectronic amplifiers, commonly known as ICP®* or IEPE* or LIVM* sensors. The module provides a constant current excitation to the sensor, then isolates, filters, and amplifies the sensor output, yielding a high-level analog voltage output. The excitation current, signal gain, and filter high-pass and low-pass cutoff frequencies are field-configurable through a set of slide switches.

Six poles of signal filtering in the SCM5B48 module result in greater than 100dB of normal-mode rejection for signal frequencies above the cutoff frequency. One pole of filtering is on the field side of the isolation barrier for anti-aliasing purposes and the remaining five-pole programmable Bessel filter is located on the system side. High-pass filtering is achieved through a second order passive filter, located on the field side. If desired, the output switch can be turned on continuously by simply connecting pin 22, the Read-Enable pin, to I/O Common, pin 19.

The SCM5B48 offers the option of setting the constant current source for sensor excitation to common values of 4mA or 9mA with a compliance voltage of 24VDC. Programmable gains of 1, 10 and 100 are selectable and the module offers a ±10V output. The required supply level is +5VDC, ±5%.

To ensure protection of expensive data acquisition equipment, the SCM5B48 module signal inputs and sensor excitation outputs are protected against accidental connection of voltages up to 240Vrms.

*ICP is a registered trademark of PCB Group Inc.
*IEPE is Integrated Electronic Piezo-Electric
*LIVM is Low Impedance Voltage Mode
