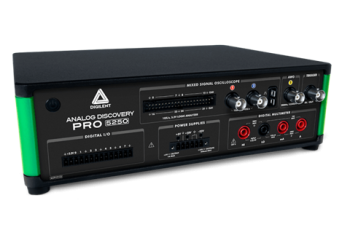

The Analog Discovery Pro ADP5250 is a multifunctional programmable and easy-to-use measuring station. It is designed to combine a complete set of instruments into a flexible and programmable device. It is equipped with a mixed-signal oscilloscope with two analog channels with 100 MHz bandwidth sampled at 1 GS/s, 34 digital channels, a three-output power supply with 25 V output voltage, an external trigger, a waveform generator and a built-in programmable digital multimeter.

It is the first device with full digital multimeter capabilities, including real current and resistance measurement and an input range of 300 V.

Kit contents

The kit includes:
- ADP5250 unit
- USB A-B cable
- 1x14 digital I/O screw terminal adapter
- 1x6 power supply screw terminal adapter
- 2x18 logic state analyzer MTE cable
- US IEC cable
- EU adapter
- UK adapter

It is possible to choose a kit augmented with a probe package. It additionally includes 2 P2150 150 MHz oscilloscope probes, 2 BNC to Mini-grabber cable, 1 set of red and black DMM probes.

Best comprehensive test system

The Analog Discovery Pro ADP5250 offers a number of advanced triggering options. Instruments in WaveForms can be cross-triggered, for example by activating an oscilloscope capture based on a received and decoded digital protocol. In addition, external signals can trigger events via a dedicated external trigger input/output.

The free WaveForms software provides these features configurable in the instruments themselves or for greater control or automation in one of the available scripting interfaces.

Those familiar with NI will notice the appearance and hardware features similar to VirtualBench VB-8012. The ADP5250 is NI's high-quality hardware, combined with the WaveForms software suite to provide the highest quality testing.

The ADP5250 works with Windows.

Features

The Analog Discovery Pro ADP5250 can be used as:
- oscilloscope
- waveform generator
- power source
- digital multimeter
-  data logger
- logic analyzer
- static I/O control
- spectrum analyzer
- network analyzer
- impedance analyzer.

Properties

Analog inputs:

• Used in oscilloscope, data logger, network analyzer, spectrum analyzer and impedance analyzer
• Two analog input channels accessible via BNC connectors on the front panel
• Channel type: single-ended
• Analog bandwidth: 100 MHz at -3 dB
• 8-bit resolution
• Maximum sampling rate: 1 GS/s single channel
• Maximum input range: 40 V inter-peak
• AC or DC coupling
• Maximum recording length: 1 MS per channel
• Front panel connector generating 5 V, 1 kHz rectangular wave for convenient compensation of BNC oscilloscope probes

Analog outputs:

• Used in waveform generator, impedance analyzer and network analyzer
• One channel accessible via front panel BNC connector
• 14-bit resolution
• AC amplitude (max.): ±12 V
• Maximum analog bandwidth: 5 MHz at -3 dB
• Maximum sampling rate: 125 MS/s
• Software-switchable filter: 36 MHz low-pass, 7-pin, elliptical

Power supplies:

• Digital power supplies: 3.3 V, 20 mA
• DC power supplies:
• Variable from 0 to 6 V, max current 1 A
• 0 to 25 V variable, max current 500 mA (isolated)
• 0 to -25 V AC, max current 500 mA (isolated)

Digital Multimeter

• Used in a DMM instrument
• Functions: dc voltage, ac voltage, dc current, ac current, resistance, diode, continuity
• Resolution: 5 1/2 digits
• Sampling frequency of 5 S/s
• Entrance Protection:
  - Diode resistance: up to 300 V DC
  - DC and AC voltage: up to 300 V DC or 265 VAC (rms) 400 V AC (peak)
  - DMM A current connector fuse: internal ceramic fuse, 10 A 250 V, delayed, 5 x 20 mm, T 10 AH 250 V
  - Current connector fuse mA DMM: internal ceramic fuse, 1.25 A 250 V, delayed, 5 x 20 mm, T 1.25 AH 250 V
  - Maximum common voltage: 300 V DC or AC (rms)

Digital inputs:

• Used in logic state analyzer
• Channels: 32
• Input voltage: from 0 V to 5 V
• Input threshold: 0 V to 2 V
• Maximum sampling rate: 1 GS/s
• Typical record length: 1 MS

Digital inputs and outputs:

• Used in an instrument with static inputs/outputs
• Channels: 8
• Input logic standard: TTL compatible with 5 V
• Output logic standard: 3.3 V LVTTL

Advanced Triggering:

• Trigger sources: oscilloscope analog channels, function generator start, digital inputs, digital I/O, power line frequency, external trigger
• Trigger modes
  • Normal, automatic, forced, single
• Analog trigger
  • Edge with hysteresis
• Digital Trigger
  • Edge, level, pattern, fault
• External Trigger:

  • TTL input compatible with 5 V or LVTTL output 3.3V
  • Drive force 4mA

Connectivity:

• Device to computer: USB 2.0 Hi-Speed
