Digital Discovery
Portable USB logic state analyzer and digital test pattern generator
- 32-channel digital logic state analyzer (1.2...3.3 V CMOS, 8 channels at 800 MS/s*, 16 channels at 400 MS/s* and 32 channels at 200 MS/s)
- Protocol analyzer (SPI, I²C, UART, CAN, AVR)
- 16-channel pattern generator (1.2...3.3 V CMOS, 100 MS/s)
- 4-channel programmable power supply 1.2...3.3 V /100 mA. The same voltage supplies the input buffers of the logic state analyzer and the input/output buffers of the pattern generator to maintain logic level compatibility with the circuit under test.
High price? Log in and buy cheaper
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Digital Discovery
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add410-338 Digital DiscoveryPortable USB Logic Analyzer and Digital Pattern GeneratorIn stockWarranty: €238.00€292.74Login to check your price 410-338 Digital DiscoveryPortable USB Logic Analyzer and Digital Pattern GeneratorAvailability:In stockNet price:€238.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add240-127 Digital DiscoveryPortable USB Logic Analyzer and Digital Pattern Generator and 16 Logic ProbesIn stockWarranty: €272.00€334.56Login to check your price 240-127 Digital DiscoveryPortable USB Logic Analyzer and Digital Pattern Generator and 16 Logic ProbesAvailability:In stockNet price:€272.00
Accessories
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add410-349 High Speed Adapter&Logic ProbesDigital Discovery High Speed Adapter and Logic ProbesIn stockWarranty: €53.00€65.19Login to check your price 410-349 High Speed Adapter&Logic ProbesDigital Discovery High Speed Adapter and Logic ProbesAvailability:In stockNet price:€53.00
Description

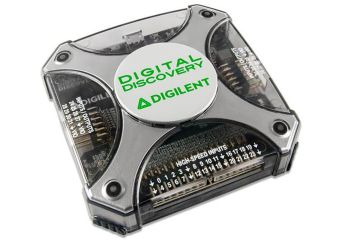

Digital Discovery™ is a device that combines a logic state analyzer with a protocol analysis function and a test pattern generator. It was developed for engineers testing various types of digital systems. Digital Discovery is supported by the free WaveForms software (3.5.4 or later) and can be configured as any of the following instruments:
- 24-channel digital logic state analyzer (1.2...3.3 V CMOS, up to 800 MS/s (with High Speed adapter))
- 16-channel pattern generator (1.2...3.3 V CMOS, 100 MS/s)
- 16-channel virtual digital I/O, including buttons, switches and LEDs - ideal for logic training applications
- Programmable 1.2...3.3V/100mA power supply. The same voltage supplies the input buffers of the logic state analyzer and the input/output buffers of the pattern generator to maintain logic level compatibility with the circuit under test.
- Digital bus analyzers (SPI, I²C, UART, I2S, CAN, parallel).
Video
Technical Specification
- Software
|
Included software |
Free WaveForm software |
- Digital Logic Analizer
|
Channels |
24 |
|
Sample rate |
800 MS/s (with the High Speed Adapter) |
|
Bandwidth |
100MHz+ |
|
Voltage Range |
1,2 V do 3,3 V (5V compatible when used as inputs) |
|
Buffer |
2Gbit DDR3 acquisition |
|
Bus Analyzers |
SPI, I²C, UART, CAN, I2S, Parallel and Custom |
- Digital Pattern Generator
|
Channels |
16 |
|
Sample rate |
100 MS/s |
|
Bandwidth |
50MHz |
|
Voltage Range |
1.2V do 3.3V |
|
Bus Output |
Counters and Custom |
- Multi-purpose Digital I/O
|
Channels |
16 |
|
Sample rate |
100 MS/s (50 MHz max output frequency) |
|
Voltage Range |
1,2 V do 3,3 V (5V compatible when used as inputs) |
|
Buffer |
Algorithmic pattern generator (no buffers used) |
- Protocol Analizer
|
Channels |
16-32 |
|
Voltage Range |
1,2 V do 3,3 V (inputs 5V compatible) |
|
Bus Analyzers |
UART: send and receive |
- Programmable Power Supplies
|
Voltage Range |
1,2V do 3,3V |
|
Current Limit |
100 mA max available in each of the two 2×6 MTE connectors |
- Script Editor
|
Supported Instruments |
All |
|
Language |
Javascript |
- Cross Triggering
|
Supported Instruments |
Logic Analyzer, Pattern Generator |
- Provided Hardware
|
410-338 Digital Discovery |
|
|
240-127 Digital Discovery |
|
- Pinout
|
Pinout |
 |
