Display |

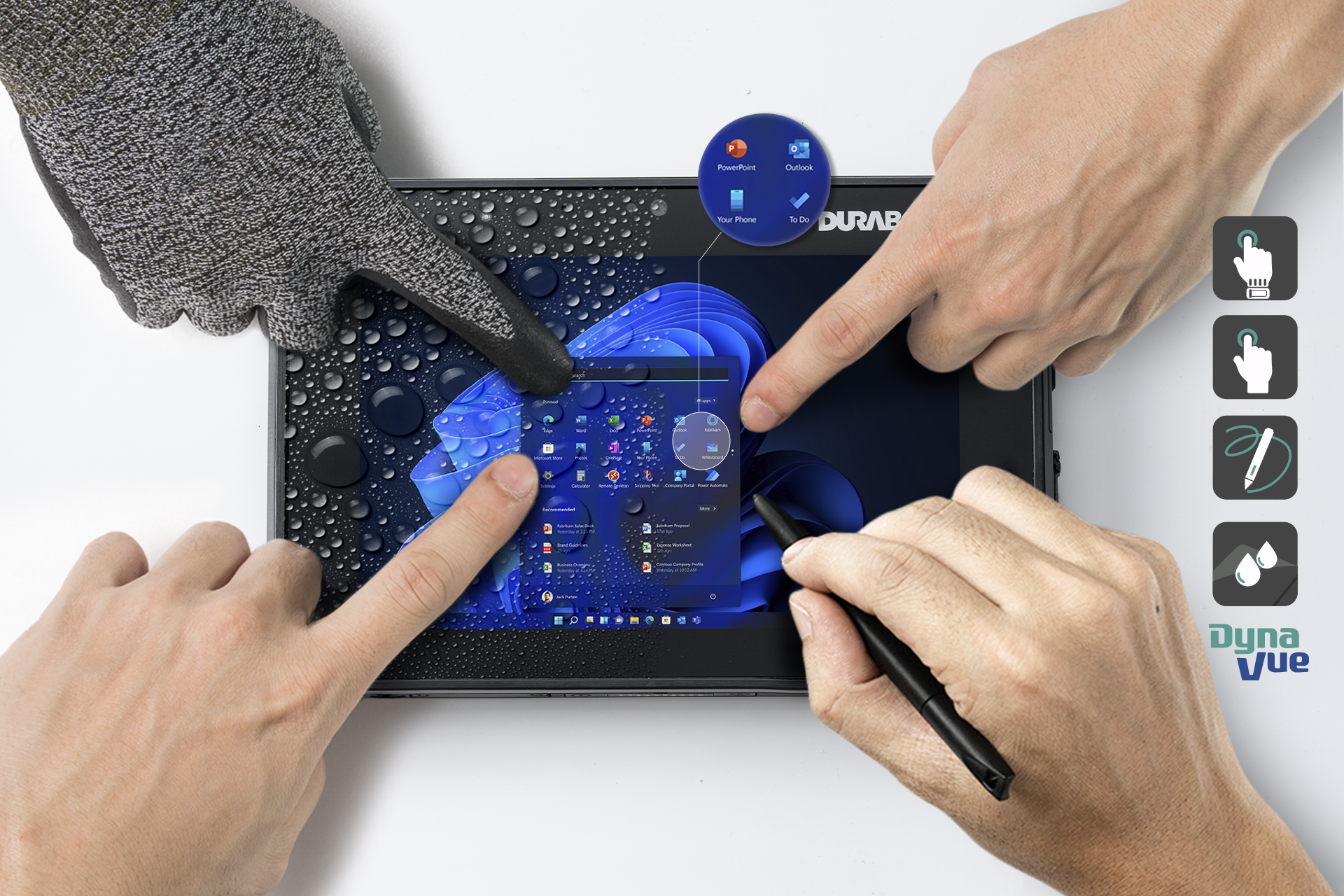

8.0” LCD (1280 x 800) 800 nits DynaVue® sunlight readable display with capacitive multi-touch screen Optional with digitizer User selectable touch mode for Finger/Water, Glove or Stylus programmable function |
Operating System |
Windows® 10/11 Pro 64-bit |
Processors |

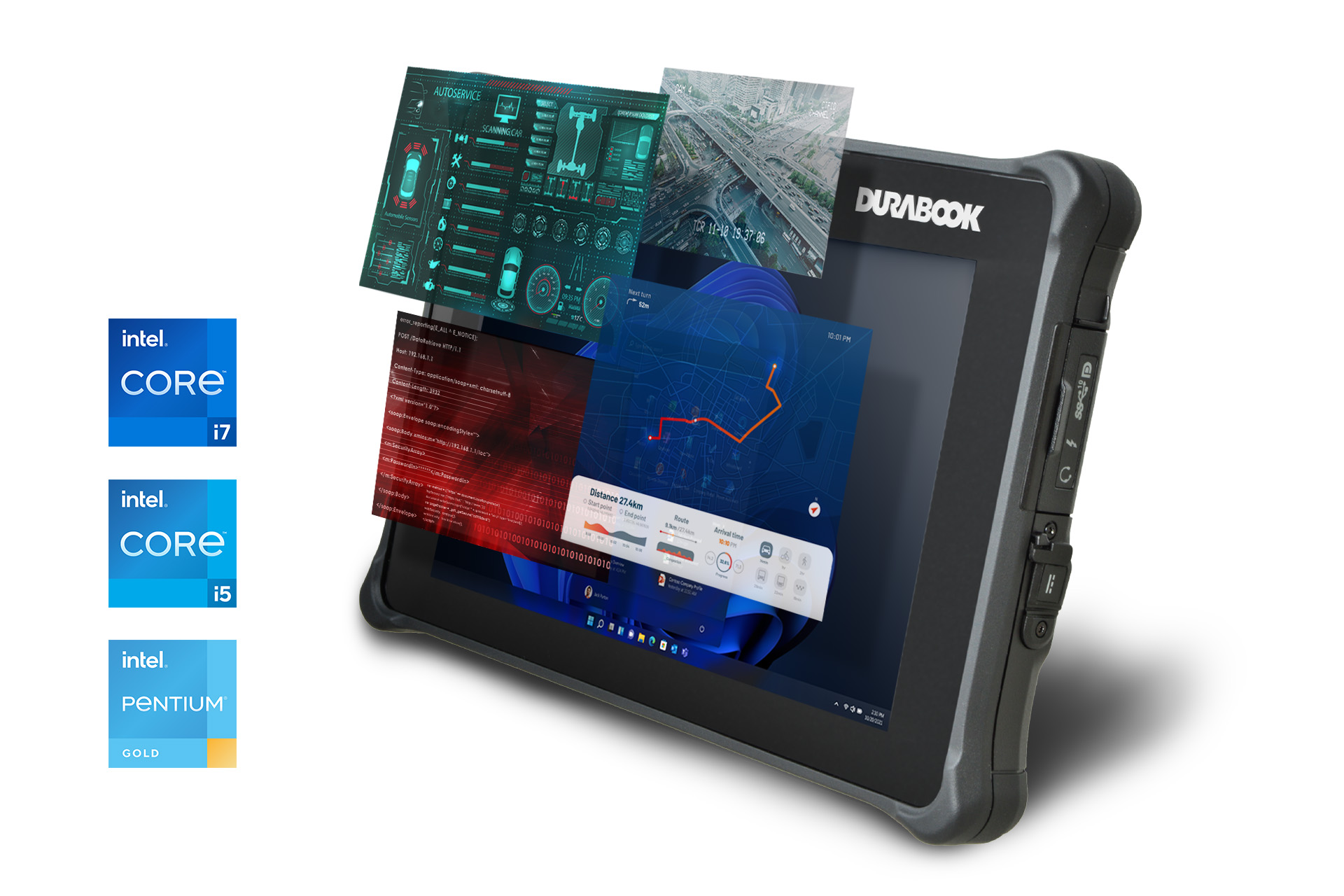

Intel® Core™ i7-1250U (12th Gen) Processor with vPro™ (12MB Cache, up to 4.7 GHz, 2P+8E cores) Intel® Core™ i5-1230U (12th Gen) Processor with vPro™ (12MB Cache, up to 4.4 GHz, 2P+8E cores) Intel® Pentium® Gold Processor 8500 (8MB Cache, up to 4.4 GHz, 1P+4E cores) |
Memory |
Onboard 8GB up to 16GB (LPDDR4x) |
Storage |
128GB NVMe PCIe SSD Optional 256GB/512GB/1TB PCIe SSD |
Graphics |
Intel® Iris® Xe Graphics |
Camera |
Integrated 2.0 MP front-facing camera Optional 8.0 MP auto-focus rear camera with flash |
Audio |
Integrated microphone Intel® High Definition Audio Compliant Integrated speaker x 1 |
I/O Ports |
Thunderbolt 4 x 1 USB 3.2 Gen2 (type C) x 1 (support DP) Audio in/out (combo jack) x 1 microSD card (microSDXC) x 1 Docking connector (20-pin Pogo) x 1 Nano SIM card x 1 DC-In jack x 1 Optional USB 3.2 Gen1 (type A) x 12 Optional 10/100/1000 Ethernet (RJ45) x 12 Optional serial port (RS232) x 12 Optional 1D/2D barcode reader x 12 Optional RF antenna pass-through for GPS, WWAN and WLAN1 |
Keyboard & Input |
3 buttons (1 user-definable key) |
Expansion Slot |
Optional magnetic stripe reader1,2 Optional smart card reader with LF/HF-RFID (NFC) or UHF-RFID (NFC) or RS232/RJ45/USB 3.2 Gen1 (type A)1,2 |
Wireless & Communications |
Intel® Wi-Fi 6E AX211 (802.11 ax) Bluetooth® V5.2 Optional GPS and 4G LTE multi-carrier mobile broadband Optional RF antenna pass-through for GPS, WWAN and WLAN1 |
Security |
Intel® vPro™ Technology (per CPU options) TPM 2.0 NIST BIOS compliant Stealth mode Night vision mode Optional smart card reader1,2 Optional LF/HF-RFID (NFC) reader1,2 Optional UHF-RFID (NFC) reader1,2 |
Power |
AC adapter : 100-240V, 50Hz-60Hz, 65W Main battery Li-Ion, 3.8V, 3600mAh, 8.5 hours3 Optional long life battery Li-Ion 3.8V, 7200mAh, 17 hours3 Optional swappable battery: 5 minutes swap time4 |
Dimension & Weight |
227 mm (L) x 150 mm (W) x 20.5 mm (H) 0.86 kg |
Warranty |
3-year limited warranty standard |
