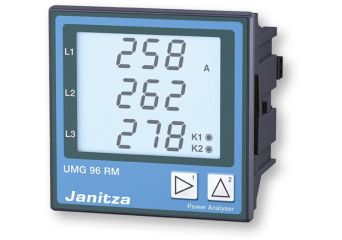

UMG 96RM-E

.

UMG 96RM-E is a universal analyser of electricity parametersóby Janitza. It allows you to easily monitor, analyse, record parameters such as active power, reactive power, leakage current (RCM), total current consumption, voltage and higher harmonics. It can be connected over Ethernet or via a serial interface, all using Modbus TCP or RTU protocols.

The following are all the features of this device:

Universal energy meter:

• Measurement and recording of current
• High transparency of the measurement system
• Constant event logging, with a high resolution of 200 ms

Current leakage measurement (RCM):

• Continuous leakage current monitoring
• Alarming if predefined thresholds are exceeded
• Fast response time to changes in leakage current
• Solid measurement of leakage current
• Continuous measurement of leakage current, without the need to reset the device

Electricity meter:

• Continuous recording of energy consumption
• An indispensable instrument for assessing energy efficiency, and safe design of distribution systems
• Analyzer for higher harmonics
• Higher harmonics analyser/event recorder:Single harmonics analysis of voltage and current
• Prevention of outages
• Prevention of production downtime
• Increased lifetime of equipment on site
• Instant identification and analysis of energy fluctuations (voltage,current), in the user-friendly GridVis® software;

Expanded tariff selection:

• 7 tariffs for effective energy (consumption, distribution)
• 7 tariffs for reactive power (inductive, capacitive )
• 7 tariffs for apparent power
• L1, L2, L3, for each phase

Highest possible level of reliability:

• Continuous measurement of leakage current
• Long-term recording of leakage current measurements, allows changes in current to be detected more easily and, as a result, a potential fault resulting, for example, from damaged insulation to be counteracted

Time-domain characteristics:

• Easier recognition of dependencies between events
• Configurable thresholds for leakage current measurement can be optimised individually: permanently, dynamically, and in several steps
• Monitoring of the central ground point (CGP) and other panels

Surge and short-circuit analysis:

• Event list with time stamp, and values
• Presentation of short-circuit faults on a graph with duration
• Presentation of the current of a given phase during an overvoltage
• Presentation of the voltage of a given phase, during an overvoltage

Harmonic analysis of current components during overvoltage:

• Frequencies for currentsóin where problems occur
• Current surges for individual frequency component
• Analysis for up to 40 harmonics

Real-time view of maximum input/output values:

• Expansive configuration of digital inputs/outputs, allows alarming, reading and control of other devicesAccess to measurement data via Ethernet, Modbus TCP/RTU gateway function:
• Easy integration of the measurement data into the instrument.
• Easy integration with other devices
• Faster and more reliable data exchange
• Modern browser interface
• Global access to measurement data via a web browser (analyser must be exposed to the public)
• Access to measurement data via different channels
• Data logging to internal memory of 256 MBConnection to Modbus RTU slave’s via built-in Modbus gateway

Web page of the measuring device:

• Page to view electricity parameters
• Presentation of real-time and historical measurement data through a browser
• Presentation of voltage and voltage and historical data
• Presentation of voltage and current in the form of a waveform
• Possibility to activate an access password
