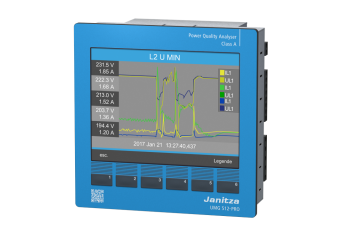

UMG 512-PRO
Class A power quality analyzer - highest accuracy, IEC 61000-4-30, EN 50160, IEEE519, large graphical LCD display, programmable in Jasic, flicker measurement, panel mounting or DIN rail, measurement up to 63 harmonics
UMG 512-Pro is a class A multi-purpose power quality analyser. It can measure practically all the most important power quality parameters in accordance with EN 50160, IEEE519 or EN 61000-2-4 standards. All power quality parameters can be recorded in the internal memory .
- Class A analyser, power quality measurement in accordance with EN 50160, IEEE519 or EN 61000-2-4
- Measurement of up to 63 harmonics
- Advanced power quality reporting
- Advanced reporting, such as leakage current rise (RCM)
- Access to all data via HTTP page
- Modbus TCP/RTU gateway function
- Colour display provides very good graphs of selected parameters
- BACnet protocol support
High price? Log in and buy cheaper
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
UMG 512-PRO
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add5217003 UMG 512-PROClass A power quality analyzer, supply voltage: 48...110 VAC or 24...150 VDC, new design, Applications: Measurement monitor, EN 50160 Watchdog PRO, IEC 61000-2-4 Watchdog PRO, Push Service PROOut of stock Warranty: €2,939.00€3,614.97Login to check your price 5217003 UMG 512-PROClass A power quality analyzer, supply voltage: 48...110 VAC or 24...150 VDC, new design, Applications: Measurement monitor, EN 50160 Watchdog PRO, IEC 61000-2-4 Watchdog PRO, Push Service PROAvailability: Out of stockNet price:€2,939.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add5217011 UMG 512-PROClass A power quality analyzer, supply voltage: 95...240 VAC or 80...300 VDC, new design, Applications: Measurement monitor, EN 50160 Watchdog PRO, IEC 61000-2-4 Watchdog PRO, Push Service PROIn stockWarranty: €2,939.00€3,614.97Login to check your price 5217011 UMG 512-PROClass A power quality analyzer, supply voltage: 95...240 VAC or 80...300 VDC, new design, Applications: Measurement monitor, EN 50160 Watchdog PRO, IEC 61000-2-4 Watchdog PRO, Push Service PROAvailability:In stockNet price:€2,939.00
Description
Electricity quality:
- Measurement of higher harmonics up to 63, even odd harmonics (U, I, P, Q)
- Measurement of inter-harmonics (U, I)
- Calculation of THD-U/THD-I/TDD (harmonic content factor
- Measurement of unbalanced current
- Measurement of the congruent component, opposing and neutral component
- Spinning field direction
- Voltage peak factor
- Flicker/vibration measurement according to DIN 61000-4-15
- Transient measurement and recording (>39us)
Recording of very short disturbances (>10ms)
High measurement quality:
- Interruptible leakage current measurement (RMS)
- Measuring process in accordance with IEC 61000-4-30
- Certified measurement accuracy - Class A
- Constant voltage and current sampling at 25600 Hz
- 512 measuring points per period
- Recording 2000 measurements per measuring cycle
- Accuracy of active power measurement: Class 0.2
- Very fast measurement allows monitoring and recording of very short disturbances, as low as 39 us
Recording current and voltage (15 - 440 Hz)
GridVis - software for visualisation and processing of measurements
- Intuitive operation
- Configuration of UMG family analysers
- Software with ISO 50001 EnMS certification
- Automatic or manual measurement readout
- Comprehensive alarming capabilities
- User management
- Access to third party Modbus RTU devices
- Graphical user interface (topology view) for visualisation of actual data and notifications.
- Display of minimum, average and maximum values in the output
- Possibility of statistical processing of measured data
- Vast data export capabilities (e.g. to Excel format)
- Generation of energy consumption and quality reports in accordance with EN 50160, IEEE 519, EN 61000-2-4 - manually or according to a set schedule
- Save to a central database (e.g. MySQL/MS SQL/Derby/ Janitza DB)
- Easy scalability and on-site integration
- Some attributes are version-dependent (only GridVis Basic is free)
Power quality:
- Predefined PQ(Power quality) reports provide instant power quality statements and comply with the most important standards: EN 50160, EN 61000-2-4, NeQual, IEEE 519, ITIC (CBEMA) (Manual only)
- Reports can be generated depending on the time set
- Freely configurable time plans
- Reports can be exported for printing, or to multiple digital formats: HTML, XML, Excel, Word, PDF
- Convenient, time-controlled automatic report export to Excel-automate the transfer of data to other applications
Generate annual reports compliant with EN 50160
Power suppliers have the difficult task of generating 52 power quality reports per year. In practice, it is difficult to keep this amount of data under control. GridVis software automates the reporting process, saving staff time and company money. The generation of annual statements is based on the EN 50160 standard and provides a quick overview of the monitored network, and allows you to see in which periods it did not comply with EN 50160.
