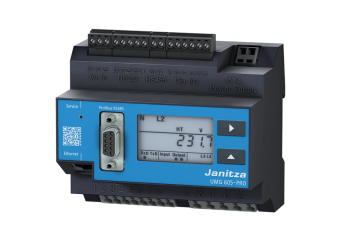

UMG 605-PRO
Power quality analyzer, graphical programming in Jasic, HTTP configurable page, Modbus TCP/RTU, PROFIBUS, BACnet, SNMP, EN 50160
- Up to 63rd harmonic analyzer
- Intelligent alarming
- Flicker monitoring - according to EN 61000-4-15
- Convenient leakage current report generation (RCM)
- Email notification
- Modbus TCP - Modbus RTU gateway function
- 128 MB internal memory for measurement logging (up to 2 years)
- PLC function - programmable in Jasic graphical language
Price from €1,484.00 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
UMG 605-PRO
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add5216227 UMG 605-PROAnalizator jakości energii elektrycznej, zasilanie urządzenia: 95...240 VAC lub 135...340VDCIn stockWarranty: €1,484.00€1,825.32Login to check your price 5216227 UMG 605-PROAnalizator jakości energii elektrycznej, zasilanie urządzenia: 95...240 VAC lub 135...340VDCAvailability:In stockNet price:€1,484.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add5216028 UMG 605-PROAnalizator jakości energii elektrycznej, zasilanie urządzenia:50...110 VAC lub 50...155VDCOut of stock Warranty: €1,484.00€1,825.32Login to check your price 5216028 UMG 605-PROAnalizator jakości energii elektrycznej, zasilanie urządzenia:50...110 VAC lub 50...155VDCAvailability: Out of stockNet price:€1,484.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add5216229 UMG 605-PROAnalizator jakości energii elektrycznej, zasilanie urządzenia:20...55 VAC lub 20...77VDCIn stockWarranty: €1,484.00€1,825.32Login to check your price 5216229 UMG 605-PROAnalizator jakości energii elektrycznej, zasilanie urządzenia:20...55 VAC lub 20...77VDCAvailability:In stockNet price:€1,484.00
Description
The UMG 605-Pro is an energy analyzer that has a number of communication interfaces for easy integration with other devices and software. The analyzer has Ethernet, RS-485, RS-232 and also PROFIBUS and BACnet (option), so it can be easily implemented in any BMS, SCADA system. The device allows recording of measurement data for up to 2 years on 128 MB internal flash memory. Access to the measurements is also available via a web browser.
Power quality
- Continuous power quality monitoring (e.g. EN 50160)
- Harmonics analysis up to the 63rd harmonic, even and odd
- Interharmonics
- Distortion factorTHD-U /THD-I
- Measurement of positive, negative and zero sequence component
- Flicker measurement in accordance with DIN EN 61000-4-15
- Logging and storage of transients (> 50 μs)
- Recording of short-term interruptions (> 20 ms)
- Monitoring start-up processes
- Recorder for limit value events
Power
- 4 voltage and 4 current measurement inputs
- Logging and digitalisation of effective values (true RMS) of currents and voltages (15 – 440 Hz)
- Continuous sampling of the voltage and current measurement inputs at 20 kHz
- Recording of over 2,000 measured values per measurement cycle (200 ms)
- Stipulation of nominal current possible for measuring current events
- Fourth current measurement input is suitable for measuring the current in the neutral or PE conductor or for measuring any potential difference between N and PE
- Large measured data memory (memory range = 5 000 000 measured values)
- Simple remote polling of measured data via the device's own homepage
- All interfaces can be used simultaneously
- Up to 4 ports can be accessed simultaneously
Impressive reporting with GridVis®
- Automatic generation and sending of power quality reports
- Power quality reports per EN 50160, EN 61000-2-4, IEEE519
- Illustration of the ITI-(CBEMA) curve
- Freely definable time planning for the generation of reports
Modern communications architecture via Ethernet
- Rapid, cost-optimised and reliable communication through integration into an existing Ethernet architecture
- Integration in PLC systems and building management systems
- High flexibility due to the use of open standards
- Simultaneous polling of interfaces possible
Ethernet-Modbus gateway and high-speed-Modbus
- Simple integration of Modbus-RTU devices into an Ethernet architecture through the Modbus gateway function
- Integration of devices with identical file formats and matching function codes possible via Modbus RTU interface
- Fast and reliable data exchange via RS485 interface
- Speed up to 921.6 kB/s
Graphical programming
- Comprehensive programming options on the device, 7 programs simultaneously (PLC functionality)
- Jasic® source code programming
- Functional expansions far beyond pure measurement
- Complete APPs from the Janitza library
Convenient home page and email functions
- Information can be received conveniently by email and via the device homepage
- Access to powerful device homepage via web browser
- Online data, historical data, graphs, events and much more, is available direct from the homepage
Large measurement data memory
- 128 MByte
- 5.000.000 saved values
- Recording range up to 2 years
- Recording freely configurable by the user
