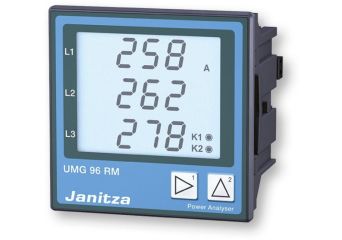

UMG 96RM

Special advantages

• Compact design saves space and reduces installation costs

• Continuous and long-term data recording thanks to a large measurement data memory or via online data acquisition (e.g. GridVis® Service)

• High level of data security and redundancy

• Expansive communication capabilities and extensive protocol support

• Comprehensive, predefined reports for power quality and energy consumption analysis (via GridVis® Service)

• Easy generation of reports with a single button or automatically, according to defined time schedules

• Precise measurement results ensure efficient infrastructure and high production availability

• Generic Modbus profile: Ability to integrate and visualise any Modbus-enabled devices and systems, including those from other manufacturers, in monitoring solutions

• Long-term availability of measurement devices ensures easy system expansion and upgrade

Acquisition of energy and load profile data

• Detailed measurement of energy and load profile data

• Increased power transparency through energy analyses

• Safer energy distribution system design

• Cost centre analysis

• Determination of energy costs

• Disaggregation and allocation of energy consumption to individual consumers

Energy management systems (ISO 50001)

• Continuous improvement of energy efficiency

• Cost reduction

• Multifunctional network parameter analysers of the UMG 96RM series are an essential component of energy management systems

• Transparency of energy supply

• Increased transparency thanks to a multi-stage, scalable measurement system

• Recording individual events through continuous high-resolution measurements

Power quality monitoring

• Signaling insufficient power quality

• Implementing corrective actions for network problems

• Preventing production downtime

• Significantly longer equipment life

• Improving sustainability

Measuring accuracy and metrological performance

• Measuring accuracy: 0.2% (voltage), active energy class (kWh) = 0.5

• High sampling frequency: 21.3 kHz

• Reliable voltage measurement accuracy: 0.2%

• Reliable active energy (kWh) accuracy class: 0.5

• Energy meter with 7 tariffs - active and reactive energy

• Energy measurement in 4 quadrants, each with 7 tariffs for active and reactive energy

• Safe and precise measurement of operating values for individual electrical loads

Communication

• Communication interfaces: Modbus

• Multiple interfaces and protocols for easy integration with host systems (energy management systems, PLC, SCADA, BMS)

Harmonic analyser

• Harmonic analysis up to 40. order

• Information on power quality, grid disturbances and potential grid "polluting" loads

Connectors

• Pluggable screw terminals

• Convenient installation even in limited space

Basic device

• An RS485 interface with Modbus protocol and 2 digital outputs enable fast and cost-effective monitoring of energy quality and energy consumption

Lighting and display

• Lighting

• Large, high-contrast LCD display with backlight

• Very good readability and intuitive operation, even in low-light conditions
