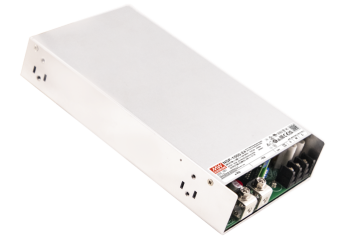

NSP-1000

• 85~305Vac input with PFC(277Vac available)
• Global certificates in multi-fields(ITE 62368-1, Medical 60601-1, Household 60335-1 , Industrial 61558-1/2-16/61010-1/-2-201,
  Energy converter 62477-1) & SEMI47 approved
• 200% peak power capability
• High efficiency up to 93%
• 4000W parallel operation (3+1)
• Built-in CANBus interface (MODBus optional)
• FET O-ring protection (optional: NSP-1000-xxOR/MODOR models)
• Output voltage 0~120% and output current 0~100% programmable
• Current sharing up to 4000W(3+1) for parallel use
• Built-in OR-ing FET (by request, Order NO.:
  NSP-1000-xxOR/MODOR)
  CANBus Built-in or MODBus protocol (by request)
• -40~+85 °C wide range operation temperature(> +60 °C derating)
• Extremely low leakage current<350uA, 2 x MOPP,
  suitable for BF medical applications
• Built in constant current limiting circuit
• Protections: Short circuit / Overload / Over voltage
  / Over temperature
• Built-in remote ON/OFF control/Remote Sense/ DC OK signal
• 5 Vaux and 12 Vaux power
• Over voltage category III (OVC III)
• Operating altitude up to 5000 meters
• Built-in intelligent fan speed control, low noise <45dB
• Conformal coating
• 5 years warranty
