- 8 channel actuator in a compact size
- Suitable for various and mixed applications
- For AX, C-load, capacitive & inductive of loads
- Program via ETS5.0 software
- Manual control via Push button
- Programmable various time and scene function
High price? Log in and buy cheaper
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddKAA-8R-16SKNX universal actuator with Data SecureIn stockWarranty: €176.50€217.10Login to check your price KAA-8R-16SKNX universal actuator with Data SecureAvailability:In stockNet price:€176.50 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddKAA-8R-10SKNX universal actuator with Data SecureIn delivery Warranty: €113.10€139.11Login to check your price KAA-8R-10SKNX universal actuator with Data SecureAvailability: In deliveryNet price:€113.10
Description

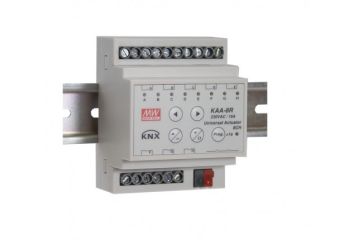

The KNX actuator is a 8 channel device with high quality independent latching relay for switch, shutter or any possible mixed applications. The compact design with 4 units (72 mm) wide modular makes it suitable for installation in the distribution board on 35 mm mounting rails in the EIB / KNX application. The connection to the KNX bus is implemented via a bus connection terminal.The switching relays are particularly suitable for switching ohmic loads, capacitive loads, for instance LED drivers and inductive loads as well as motors in shutter or blind applications. The actuator are powered via the EIB / KNX and do not require any additional power supply.
Available models:
- KAA-8R
- KAA-8R-10
Technical Specification
KAA-8R: DETAILS
