After contact there is possible modification to add crocodile clips - optional |
- Charger for lead-acid batteries (flooded, Gel and AGM) and li-ion batteries (lithium iron and lithium manganese)
- Built-in 3 stage programmable charging curve
- Universal AC input/ Full range
- Built-in active PFC function
- Fanless design, cooling by free air convection
- Built-in temperature compensation function
- Protection: Short circuit / Over voltage /Over temperature/ Battery under voltage / Battery over voltage / Battery reverse polarity protection
High price? Log in and buy cheaper
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddENC-120-12desktop battery charger 115W 14.4V 8AIn stockWarranty: €60.30€74.17Login to check your price ENC-120-12desktop battery charger 115W 14.4V 8AAvailability:In stockNet price:€60.30 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddENC-120-24desktop battery charger 115W 28.8V 4AIn stockWarranty: €60.30€74.17Login to check your price ENC-120-24desktop battery charger 115W 28.8V 4AAvailability:In stockNet price:€60.30 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddENC-120-48desktop battery charger 115W 57.6V 2AOut of stock Warranty: €60.30€74.17Login to check your price ENC-120-48desktop battery charger 115W 57.6V 2AAvailability: Out of stockNet price:€60.30
Description

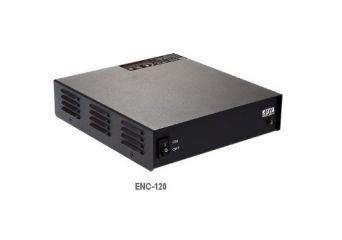

ENC-120 is a single output 120W AC/DC desktop type charger with 3 stage charging curve. In addition to the embedded pre-defined charging curves, the default curve is programmable and thus able to accommodate different types of batteries, such as lead-acid batteries (gel, flooded and AGM) and li-ion batteries (lithium iron and lithium manganese). With the rugged mechanical design along with the high efficiency circuitry, ENC-120 operates for the ambient temperature range -30~+70°C under free air convection.
Available models:
- 13.8V: ENC-120-12
- 27.6V: ENC-120-24
- 55.2V: ENC-120-48
Technical Specification
ENC-120: 108W DETAILS
| Model | Output | Tolerance | Efficiency | Dimension |
| ENC-120-12 | 13.8V, 8A | +/-2% | 89% | 192x178x45.5mm |
| ENC-120-24 | 27.6V, 4A | +/-1% | 90% | 192x178x45.5mm |
| ENC-120-48 | 55.2V, 2A | +/-1% | 90.5% | 192x178x45.5mm |
