Manufacturer: MEAN WELL
- Universal AC input/Full range
- Protections: Short circuit / Overload / Over voltage / Battery polarity protections (by fuse)
- Built-in temperature compensation function
- Output voltage detection signal
- Cooling by free air convection
- LED indicator for power on
- Suitable for installation in metallic or non-metallic system enclosure
- 100% full load burn-in test
Price from €15.80 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSCP-35-12power supply 35W 13.8V 2.6AIn stockWarranty: €15.80€19.43Login to check your price SCP-35-12power supply 35W 13.8V 2.6AAvailability:In stockNet price:€15.80 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSCP-35-24power supply 35W 27.6V 1.4AOut of stock Warranty: €15.80€19.43Login to check your price SCP-35-24power supply 35W 27.6V 1.4AAvailability: Out of stockNet price:€15.80
Description

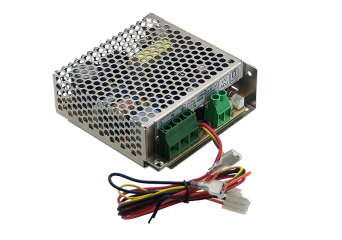

SCP series power supplies are intended for operation in monitoring systems, access control, alarm systems, etc. In conjunction with an external battery, they ensure uninterruptible power supply. During normal operation, the power supply charges the connected battery, and in the event of a mains voltage failure, it uses the energy stored in it to power the receiver. Additionally, it has a connector for connecting a thermistor to compensate for voltage depending on the ambient temperature, and a wire connector that signals a voltage loss.
Technical Specification
- SCP-35: 36-39W -output with battery charging DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Max power | Dimension |
| SCP-35-12 | 13.8V, 0~2.6A | +/-2% | 120mV | 83% | 36W | 99x97x36mm |
| SCP-35-24 | 27.6V, 0~1.4A | +/-1% | 200mV | 86% | 39W | 99x97x36mm |
