- input voltage 90-305VAC, 127-431VDC
- compatibility with the SBP-001 programmer (optional)
- built-in MODBus communication protocol (optional CANBus)
- regulation of the charging current in the range of 20-100% of the nominal value
selectable 2- or 3-stage charging curve - charging parameters can be programmed
- relay output: AC OK, DC OK, CHARGER FAIL, BATTERY LOW
- cooling with open air circulation
- suitable for lithium-ion and acid batteries
- working temperature from -30~+70°C
- operation signaling with LED diode
- compliance with many standards and certificates
- 3 years warranty
Prices with discounts and exact stock levels are visible after logging in to the e-shop.
High price? Log in and buy cheaper
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDRS-240-12All In One security power supply 240W 12V 20AIn stockWarranty: €171.40€210.82Login to check your price DRS-240-12All In One security power supply 240W 12V 20AAvailability:In stockNet price:€171.40 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDRS-240-24All In One security power supply 240W 24V 10AIn delivery Warranty: €171.40€210.82Login to check your price DRS-240-24All In One security power supply 240W 24V 10AAvailability: In deliveryNet price:€171.40 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDRS-240-36All In One security power supply 240W 36V 6.6AIn stockWarranty: €171.40€210.82Login to check your price DRS-240-36All In One security power supply 240W 36V 6.6AAvailability:In stockNet price:€171.40 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDRS-240-48All In One security power supply 240W 48V 5AIn stockWarranty: €171.40€210.82Login to check your price DRS-240-48All In One security power supply 240W 48V 5AAvailability:In stockNet price:€171.40 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDRS-240-12CANAll In One security power supply 240W 12V 20AIn stockWarranty: €171.40€210.82Login to check your price DRS-240-12CANAll In One security power supply 240W 12V 20AAvailability:In stockNet price:€171.40 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDRS-240-24CANAll In One security power supply 240W 24V 10AIn stockWarranty: €171.40€210.82Login to check your price DRS-240-24CANAll In One security power supply 240W 24V 10AAvailability:In stockNet price:€171.40 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDRS-240-36CANAll In One security power supply 240W 36V 6.6AOut of stock Warranty: €171.40€210.82Login to check your price DRS-240-36CANAll In One security power supply 240W 36V 6.6AAvailability: Out of stockNet price:€171.40 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDRS-240-48CANAll In One security power supply 240W 48V 5AIn stockWarranty: €171.40€210.82Login to check your price DRS-240-48CANAll In One security power supply 240W 48V 5AAvailability:In stockNet price:€171.40
Description

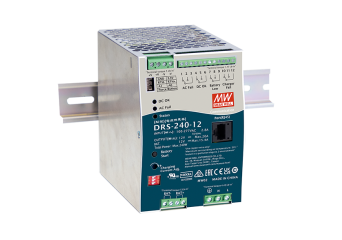

The DRS-240 is a buffer power supply for a DIN rail with a maximum power of 240W. The power supply is available with the following output voltages: 12V, 24V, 36V and 48VDC. The device has two outputs: one for load connection, the other for battery connection. The maximum load of both channels cannot exceed the power supply's rated power (240W). Thanks to the possibility of regulating the charging current, the DRS-240 can work with batteries with a capacity from 5 to even 200AH.

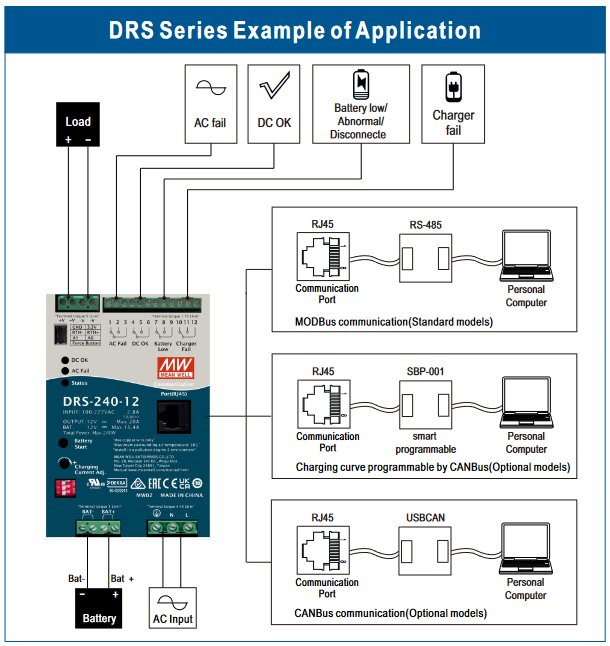

The DRS-240 is equipped with four relay outputs indicating states: AC OK, DC OK, CHARGER FAIL, BATTERY LOW.
The device has the ability to program the curve and change the charging parameters using an external SPB-001 programmer (optional - programming only in CANBus models). Thanks to the MODBus protocol it is possible to constantly monitor and diagnose the device.
DRS-240 will be used in power support systems (e.g. lighting), alarm control panels, monitoring devices and widely understood industrial automation.
Technical Specification
- DRS-240: DIN rail power supply with UPS function DETAILS
| Model | Output | Tolerance | Ripple&Noise | Efficiency | Power max. | Dimensions |
| DRS-240-12 | 12V, 0~20A | +/-1% (ładowanie) |
150mV | 90% | 240W | 85.5x125.2x129.2mm |
| DRS-240-24 | 24V, 0~10A | +/-1% (ładowanie) |
240mV | 92% | 240W | 85.5x125.2x129.2mm |
| DRS-240-36 | 36V, 0~6.6A | +/-1% (ładowanie) |
360mV | 92% | 240W | 85.5x125.2x129.2mm |
| DRS-240-48 | 48V, 0~5A | +/-1% (ładowanie) |
480mV | 92% | 240W | 85.5x125.2x129.2mm |
