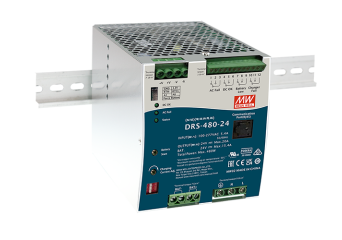

DRS-480
DIN rail power supply with UPS function
- input voltage 90-305VAC, 127-431VDC
- regulation of the charging current in the range of 20-100% of the rated value
- selectable 2- or 3-step charge curve
- possibility of programming the charging parameters
- built-in MODBus communication protocol
- relay output: AC OK, DC OK, CHARGER FAIL, BATTERY LOW
- cooling with open air circulation
- suitable for lithium-ion and acid batteries
- working temperature from -30 ~ + 70 ° C
- LED operation signaling
- compliance with many standards and certificates
- 3-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
High price? Log in and buy cheaper
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDRS-480-24All In One security power supply 480W 24V 20AIn stockWarranty: €214.20€263.47Login to check your price DRS-480-24All In One security power supply 480W 24V 20AAvailability:In stockNet price:€214.20 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDRS-480-36All In One security power supply 480W 36V 13.3AOut of stock Warranty: €214.20€263.47Login to check your price DRS-480-36All In One security power supply 480W 36V 13.3AAvailability: Out of stockNet price:€214.20 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDRS-480-48All In One security power supply 480W 48V 10AIn stockWarranty: €214.20€263.47Login to check your price DRS-480-48All In One security power supply 480W 48V 10AAvailability:In stockNet price:€214.20 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDRS-480-24CANAll In One security power supply 480W 24V 20AIn stockWarranty: €214.20€263.47Login to check your price DRS-480-24CANAll In One security power supply 480W 24V 20AAvailability:In stockNet price:€214.20 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDRS-480-36CANAll In One security power supply 480W 36V 13.3AOut of stock Warranty: €214.20€263.47Login to check your price DRS-480-36CANAll In One security power supply 480W 36V 13.3AAvailability: Out of stockNet price:€214.20 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDRS-480-48CANAll In One security power supply 480W 48V 10AIn stockWarranty: €214.20€263.47Login to check your price DRS-480-48CANAll In One security power supply 480W 48V 10AAvailability:In stockNet price:€214.20
Accessories
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Addbattery charger programmerOut of stock Warranty: €53.10€65.31Login to check your price battery charger programmerAvailability: Out of stockNet price:€53.10
Description
The DRS-480 is a buffer power supply for a DIN rail with a maximum power of 480W. The power supply is available with output voltage: 24V, 36V and 48VDC. The device has two outputs: one for load connection, the other for battery connection. The maximum load of both channels cannot exceed the power supply's rated power (480W). Thanks to the possibility of regulating the charging current, the DRS-480 can work with batteries with a capacity from 10 to even 200AH.
The DRS-480 is equipped with four relay outputs indicating states: AC OK, DC OK, CHARGER FAIL, BATTERY LOW.
The device has the ability to program the curve and change the charging parameters using an external SPB-001 programmer. Thanks to the MODBus protocol it is possible to constantly monitor and diagnose the device.
DRS-480 will be used in power support systems (e.g. lighting), alarm control panels, monitoring devices and widely understood industrial automation.
Technical Specification
- DRS-480: DIN rail power supply with UPS function DETAILS
| Model | Output | Tolerance | Ripple&Noise | Efficiency | Power max. | Dimensions |
| DRS-480-24 | 24V, 0~20A | +/-1% (ładowanie) |
240mV | 92.5% | 480W | 110x125.2x150.7mm |
| DRS-480-36 | 36V, 0~13.3A | +/-1% (ładowanie) |
360mV | 93.5% | 480W | 110x125.2x150.7mm |
| DRS-480-48 | 48V, 10A | +/-1% (ładowanie) |
480mV | 93.5% | 480W | 110x125.2x150.7mm |
