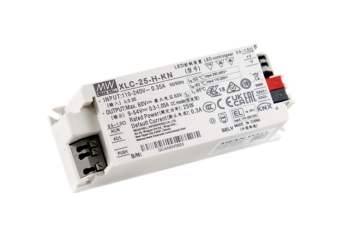

XLC-25KN

Constant power LED drivers with KNX interface

  • Constant power mode output with multiple stage selectable by ETS database (KNX)
  • KNX/EIB protocol, support KNX data secure
  • Plastic housing with class II and PFC design
  • Flicker free, complying with CE ErP directive
  • Standby power consumption <0.5W
  • Meet emergency lighting (EL) function application
  • Minimum dimming level 0.5%
  • Function:operation hours,power consumption feedback, log/linear curve selection ... etc
  • 5 years warranty

Discounted prices and exact stock levels are visible after logging in to the e-shop.

Price from €38.60 Net price

High price? Log in and buy cheaper

Product out of stock

Free shipping from €300

See 2 models

Promocja cenowa na model HDR-15-5

Product intended for professional use only
XLC-25KN

XLC-25KN

Models

  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    XLC-25-H-KN
    LED driver 25W 9~54V 0.3~1.05A
    Out of stock Warranty:
    €38.60
    €47.48
    Login to check your price
    60 pieces in box
    XLC-25-H-KN
    LED driver 25W 9~54V 0.3~1.05A
    Availability: Out of stock
    Net price:
    €38.60
    60 pieces in box
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    XLC-25-H-KNS
    LED driver 25W 9~54V 0.3~1.05A
    Out of stock Warranty:
    €38.60
    €47.48
    Login to check your price
    60 pieces in box
    XLC-25-H-KNS
    LED driver 25W 9~54V 0.3~1.05A
    Availability: Out of stock
    Net price:
    €38.60
    60 pieces in box

Description

XLC-25-KN Series is a 25W with constant power output LED driver. It can operate from 100~305VAC and output current ranging between 300 mA to 1050 mA selectable by ETS database. The integrated KNX interface avoids using the compliated KNX-DALI gateway. Thanks to high efficiency up to 88%, it is able to operate for-25℃~85℃ case temperature under free air convection. XLC-25-KN is designed based on latest safety regulations, and provides more flexibility for LED Lighting application.

Technical Specification

Model Input voltage Output parameters Output current tolerance Efficiency Dimension
(LxWxH)
XLC-25-H-KN
XLC-25-H-KNS
100~305VAC
141~400VDC
9~54 V, 300-1050 mA
typ. 300 mA
±5% 88% KN: 107x40x32mm
KNS: 147x40x32mm
