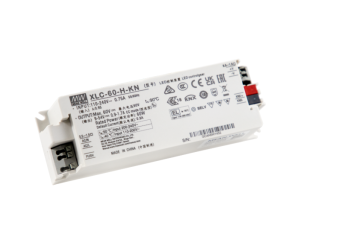

XLC-60KN

Constant power LED drivers with KNX interface

  • Constant power mode output with multiple stage selectable by ETS database (KNX)
  • KNX/EIB protocol, support KNX data secure
  • Plastic housing with class II and PFC design
  • Flicker free, complying with CE ErP directive
  • Standby power consumption <0.5W
  • Meet emergency lighting (EL) function application
  • Minimum dimming level 0.5%
  • Function:operation hours,power consumption feedback, log/linear curve selection ... etc
  • 5 years warranty

Discounted prices and exact stock levels are visible after logging in to the e-shop.

Price from €44.60 Net price

High price? Log in and buy cheaper

Product out of stock

Free shipping from €300

See 2 models

Promocja cenowa na model HDR-15-5

Product intended for professional use only
XLC-60KN

XLC-60KN

Models

  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    XLC-60-H-KN
    LED driver 60W 9~54V 0.9~1.7A KNX
    Out of stock Warranty:
    €44.60
    €54.86
    Login to check your price
    40 pieces in box
    XLC-60-H-KN
    LED driver 60W 9~54V 0.9~1.7A KNX
    Availability: Out of stock
    Net price:
    €44.60
    40 pieces in box
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    XLC-60-H-KNS
    LED driver 60W 9~54V 0.9~1.7A KNX
    Out of stock Warranty:
    €44.60
    €54.86
    Login to check your price
    40 pieces in box
    XLC-60-H-KNS
    LED driver 60W 9~54V 0.9~1.7A KNX
    Availability: Out of stock
    Net price:
    €44.60
    40 pieces in box

Description

XLC-60-KN Series is a 60W with constant power output LED driver. It can operate from 100~305VAC and output current ranging between 900 mA to 1700 mA selectable by ETS database. The integrate KNX interface avoids using the compliated KNX-DALI gateway. Thanks to high efficiency up to 90%, it is able to operate for -25℃~90℃ case temperature under free air convection. XLC-60-KN is designed based on latest safety regulations and provides more flexibility for LED Lighting application.

Technical Specification

Model Input voltage Output parameters Output current tolerance Efficiency Dimension
(LxWxH)
XLC-60-H-KN
XLC-60-H-KNS
100~305VAC
141~400VDC
9~54 V, 900-1700 mA
typ. 900 mA
±5% 90% KN: 136x45x32mm
KNS: 176x45x32mm
