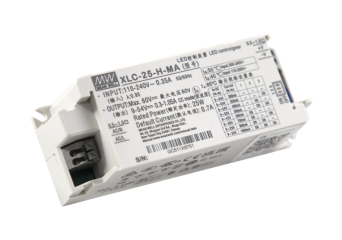

XLC-25MA
Constant power LED drivers with wireless dimming
- Matter over thread, Matter 1.3 specification
- Constant power mode output with multiple stage selectable by DIP switch
- Plastic housing with class II and PFC design
- Flicker free, complying with CE ErP directive
- Standby power consumption <0.5W
- Meet emergency lighting (EL) application
- Minimum dimming level 0.5%
- 5 years warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Price from €31.70 Net price
High price? Log in and buy cheaper
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
XLC-25MA
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddXLC-25-H-MALED driver 25W 9~54V 0.3~1.05AOut of stock Warranty: €31.70€38.99Login to check your price XLC-25-H-MALED driver 25W 9~54V 0.3~1.05AAvailability: Out of stockNet price:€31.70 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddXLC-25-H-MASLED driver 25W 9~54V 0.3~1.05AOut of stock Warranty: €31.70€38.99Login to check your price XLC-25-H-MASLED driver 25W 9~54V 0.3~1.05AAvailability: Out of stockNet price:€31.70
Description
XLC-25-MA series is a 25W with constant power output LED driver. It can operate from 100~305VAC and output current ranging between 300 mA to 1050 mA selectable by DIP switch. Thanks to high efficiency up to 88%, it is able to operate for -25℃~85℃ case temperature under free air convection. XLC-25-MA series is designed based on latest safety regulations with Matter wireless dimming. It provides more flexibility for LED Lighting application.
Technical Specification
- XLC-25MA: 25W driver series with wireless diming → Manufacturer documentation
| Model | Input voltage | Output parameters | Output current tolerance | Efficiency | Dimension (LxWxH) |
| XLC-25-H-MA | 100~305VAC, 141~400VDC |
9~54 V, 300-1050 mA, typ. 700 mA |
± 5% | 88% | 107x40x32mm |
| XLC-25-H-MAS | 100~305VAC, 141~400VDC |
9~54 V, 300-1050 mA, typ. 700 mA |
± 5% | 88% | 147x40x32mm |
