- Constant Power mode output
- Metal housing design with functional Ground
- Built-in active PFC function
- CLass 2 power unit
- No load / Standby power consumption < 0.5W
- IP67 rating for indoor or outdoor installations
- Function options: output adjustable via potentiometer, 3 in 1 dimming function (Dim to off and Isolation design)
- Typical lifetime > 50 000 hours
High price? Log in and buy cheaper
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddXLG-25-ALED driver 25W 22~54V 0.25~1.05AIn stockWarranty: €17.10€21.03Login to check your price XLG-25-ALED driver 25W 22~54V 0.25~1.05AAvailability:In stockNet price:€17.10 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddXLG-25-ABLED driver 25W 22~54V 0.25~1.05AOut of stock Warranty: €20.90€25.71Login to check your price XLG-25-ABLED driver 25W 22~54V 0.25~1.05AAvailability: Out of stockNet price:€20.90
Description

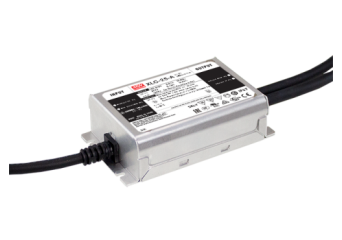

XLG-25 series is a 25W AC//DC LED driver featuring the constant power mode output. XLG-25 operates from 90~305VAC. Thanks to the high efficiency up to 88%, the entire series is able to operate between -40C ~ +85C wide temperature range with air convection. The design of metal housing and IP67 protection level allows this series to fit both indoor and outdoor applications. XLG-25 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system. XLG-25 series comply with the latest version of IEC 61347/GB7000.1-2015 and UL8750 international safety regulations. The output and dimming curcuit are also completely in accordance with the new regulations with isolation to ensure the safety of both user and luminaire system during installation.
Available models:
- XLG-25-A
- XLG-25-AB
Technical Specification
- XLG-25: 25W details
| Model | Output | Tolerance | Efficiency | Dimension |
| XLG-25 | 22~54V, 250-1050mA | +/-5% | 88% | 105x63x30mm |
