- Constant Power mode output
- Metal housing design with functional Ground
- Built-in active PFC function
- CLass 2 power unit
- DALI-2 models
- No load / Standby power consumption < 0.5W
- IP67 rating for indoor or outdoor installations
- Function options: output adjustable via potentiometer, 3 in 1 dimming function (Dim to off and Isolation design)
- Typical lifetime > 50 000 hours
High price? Log in and buy cheaper
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddXLG-50-ALED driver 50W 22~54V 0.53~2.1AIn stockWarranty: €18.00€22.14Login to check your price XLG-50-ALED driver 50W 22~54V 0.53~2.1AAvailability:In stockNet price:€18.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddXLG-50-ABLED driver 50W 22~54V 0.53~2.1AIn stockWarranty: €20.60€25.34Login to check your price XLG-50-ABLED driver 50W 22~54V 0.53~2.1AAvailability:In stockNet price:€20.60 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddXLG-50-L-DA2LED driver 50W 60~142V 0.3~0.7A DALI2Out of stock Warranty: €25.70€31.61Login to check your price XLG-50-L-DA2LED driver 50W 60~142V 0.3~0.7A DALI2Availability: Out of stockNet price:€25.70 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddXLG-50-H-DA2LED driver 50W 27~56V 0.5~1.4A DALI2Out of stock Warranty: €25.70€31.61Login to check your price XLG-50-H-DA2LED driver 50W 27~56V 0.5~1.4A DALI2Availability: Out of stockNet price:€25.70
Description

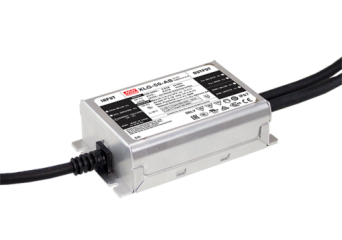

XLG-50 series is a 50W AC//DC LED driver featuring the constant power mode output. XLG-50 operates from 90~305VAC. Thanks to the high efficiency up to 90%, the entire series is able to operate between -40C ~ +90C wide temperature range with air convection. The design of metal housing and IP67 protection level allows this series to fit both indoor and outdoor applications. XLG-50 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system. XLG-50 series comply with the latest version of IEC61347/GB7000.1-2015 and UL8750 international safety regulations. The output and dimming curcuit are also completely in accordance with the new regulations with isolation to ensure the safety of both user and luminaire system during installation.
Available models:
- XLG-50-A
- XLG-50-AB
- XLG-50-L-DA2
- XLG-50-H-DA2
Technical Specification
- XLG-50: 50W (SPECIFICATION)
| Model | Wyjście | Tolerancja | Wydajność | Wymiary |
| XLG-50 | 22~54V, 530-2100mA | +/-5% | 90% | 105x63x30mm |
| XLG-50-H-DA2 | 27~56V, 500-1400mA | +/-5% | 90% | 105x63x30mm |
| XLG-50-L-DA2 | 60~142V, 350-700mA | +/-5% | 89% | 105x63x30mm |
