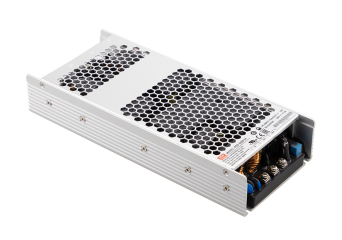

RSD-500
Single-output converter RSD with the EN50155 standard: RSD-500B-12,RSD-500B-24,RSD-500B-48,RSD-500C-12,RSD-500C-24,RSD-500C-48,RSD-500D-12,RSD-500D-24,RSD-500D-48
- Wide input voltage range: 2: 1
- Compliance with railway standards: EN50155 and EN45545-2
- Can be installed in a rack (1U profile, 41mm)
- Cooling by free air circulation, no fan
- A wide range of acceptable operating temperatures: -40 ~ + 80 ° C
- The output voltage can be adjusted
- Short-circuit, overload, overvoltage and reverse polarity protection
- I / O insulation up to 4kV
- Operation signaling by LED diode
- 3-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
High price? Log in and buy cheaper
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRSD-500B-12DC/DC converter 420W 14.4~33.6V-12V 35AIn stockWarranty: €216.40€266.17Login to check your price RSD-500B-12DC/DC converter 420W 14.4~33.6V-12V 35AAvailability:In stockNet price:€216.40 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRSD-500B-24DC/DC converter 420W 14.4~33.6V-24V 17.5AIn delivery Warranty: €216.40€266.17Login to check your price RSD-500B-24DC/DC converter 420W 14.4~33.6V-24V 17.5AAvailability: In deliveryNet price:€216.40 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRSD-500B-48DC/DC converter 420W 14.4~33.6V-48V 8.8AIn stockWarranty: €216.40€266.17Login to check your price RSD-500B-48DC/DC converter 420W 14.4~33.6V-48V 8.8AAvailability:In stockNet price:€216.40 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRSD-500C-12DC/DC converter 420W 28.8~67.2V-12V 35AIn stockWarranty: €216.40€266.17Login to check your price RSD-500C-12DC/DC converter 420W 28.8~67.2V-12V 35AAvailability:In stockNet price:€216.40 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRSD-500C-24DC/DC converter 460W 28.8~67.2V-24V 19.2AIn stockWarranty: €216.40€266.17Login to check your price RSD-500C-24DC/DC converter 460W 28.8~67.2V-24V 19.2AAvailability:In stockNet price:€216.40 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRSD-500C-48DC/DC converter 460W 28.8~67.2V-48V 9.6AOut of stock Warranty: €216.40€266.17Login to check your price RSD-500C-48DC/DC converter 460W 28.8~67.2V-48V 9.6AAvailability: Out of stockNet price:€216.40 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRSD-500D-12DC/DC converter 420W 57.6~154V-12V 25AOut of stock Warranty: €216.40€266.17Login to check your price RSD-500D-12DC/DC converter 420W 57.6~154V-12V 25AAvailability: Out of stockNet price:€216.40 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRSD-500D-24DC/DC converter 500W 57.6~154V-24V 20.8AIn delivery Warranty: €216.40€266.17Login to check your price RSD-500D-24DC/DC converter 500W 57.6~154V-24V 20.8AAvailability: In deliveryNet price:€216.40 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRSD-500D-48DC/DC converter 500W 57.6~154V-48V 10.4AIn stockWarranty: €216.40€266.17Login to check your price RSD-500D-48DC/DC converter 500W 57.6~154V-48V 10.4AAvailability:In stockNet price:€216.40
Description
The RSD-500 is a 500W built-in DC / DC converter. The device is available in 3 models differing in the input voltage range: (B: 16.8 ~ 33.6V / C: 33.6 ~ 67.2V / D: 67.2 ~ 154V). Each model is available with an output voltage of 12V, 24V or 48V. The RSD-500 converter is cooled by free air circulation. The lack of a fan significantly improves reliability and extends the life of the device. Despite the use of convection cooling, the acceptable operating temperature range is as high as -40 ~ + 80 ° C. This, combined with the resistance of the device to vibrations, EMC disturbances and the protection of the device components with plastic, makes the RSD-500 a perfect solution for e.g. rail transport, subway, trams, electric buses and other solutions for industry.
Application examples:
- Rail transport: trains, metro, trams Electric buses
- Power supply for industrial automation devices
- Power supply for telecommunications transmitters
- Working in harsh environments: vibrations, dust, extremely low or high temperatures
Technical Specification
RSD-500: Enclosed 500W DC / DC converter - SPECIFICATION
| Model | Input | Output | Noise | Efficiency | Dimensions |
| RSD-500B-12 | 16,8~33,6V | 12V, 0~35A | 100mV | 92% | 237x100x41mm |
| RSD-500B-24 | 16,8~33,6V | 24V, 0~17,5A | 120mV | 92% | 237x100x41mm |
| RSD-500B-48 | 16,8~33,6V | 48V, 0~8,8A | 150mV | 92% | 237x100x41mm |
| RSD-500C-12 | 33,6~67,2V | 12V, 0~35A | 100mV | 93% | 237x100x41mm |
| RSD-500C-24 | 33,6~67,2V | 24V, 0~19,2A | 120mV | 93% | 237x100x41mm |
| RSD-500C-48 | 33,6~67,2V | 48V, 0~9,6A | 150mV | 93% | 237x100x41mm |
| RSD-500D-12 | 67,2~154V | 12V, 0~35A | 100mV | 93% | 237x100x41mm |
| RSD-500D-24 | 67,2~154V | 24V, 0~20,8A | 120mV | 93% | 237x100x41mm |
| RSD-500D-48 | 67,2~154V | 48V, 0~10,4A | 150mV | 93% | 237x100x41mm |
