DALI-2 Touch Pannel

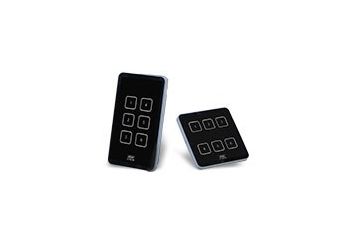

DALI-2 Touch Panel
- DALI-2 certified touch panel
- Compliant with IEC-62386-332 feedback
- Compatible for DALI-2 controllers
- Powered by DALI Bus
- Configurable functionality via MEAN WELL DLC-02 software
- Each button can trigger multiple modes:
Short Click/Double Click/Long Press, to trigger scene
or grouping functions - Backlight brightness adjustable
- Touch panel volume adjustable
- 5 years warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
High price? Log in and buy cheaper
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
DALI-2 Touch Pannel
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDTP-206-UDALI-2 touch panel 6 Keys U typeIn delivery Warranty: €78.00€95.94Login to check your price DTP-206-UDALI-2 touch panel 6 Keys U typeAvailability: In deliveryNet price:€78.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDTP-204-UDALI-2 touch panel 4 Keys U typeOut of stock Warranty: €74.60€91.76Login to check your price DTP-204-UDALI-2 touch panel 4 Keys U typeAvailability: Out of stockNet price:€74.60 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDTP-206-EDALI-2 touch panel 6 Keys E typeIn stockWarranty: €77.10€94.83Login to check your price DTP-206-EDALI-2 touch panel 6 Keys E typeAvailability:In stockNet price:€77.10 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDTP-203-EDALI-2 touch panel 3 Keys E typeOut of stock Warranty: €72.00€88.56Login to check your price DTP-203-EDALI-2 touch panel 3 Keys E typeAvailability: Out of stockNet price:€72.00
Description
The DTP-2XX series, which complies with the DALI IEC62386 standard as a DALI-2 input device, is powered by the DALI bus and features a variety of buttons. This panel is easy to install and also allows personalization of laser-engraved symbols. A built-in switch allows users to adjust the backlighting of the buttons as well as the volume, allowing users to customize the settings according to their needs.
All touch panel functions can be set using the DALI MEAN WELL DLC-02 lighting controller software after scanning the devices installed on the DALI bus. The touch panel can be used with the MEAN WELL DLC-02 DALI controller, LED power supply and various DALI sensors to create a DALI-2 digital lighting system, which can control on/off, color temperature, color, brightness, scenes, grouping, schedules and various events, meeting most lighting control needs.
Technical Specification
DTP-200: DALI-2 Touch Pannel -> Manufacturer Specification
| Model | Photo | Button layout | Number of buttons | Dimension |

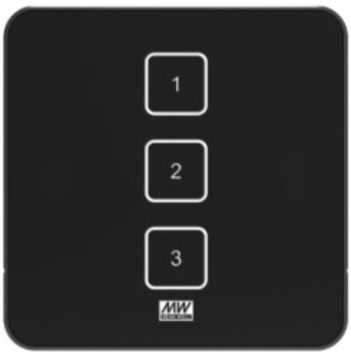

| DTP-203-E |  |
E-type | 3 | 86x86x26.5mm |

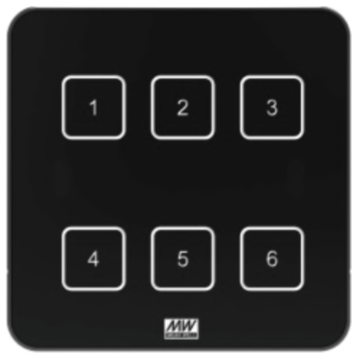

| DTP-206-E |  |
E-type | 6 | 86x86x26.5mm |

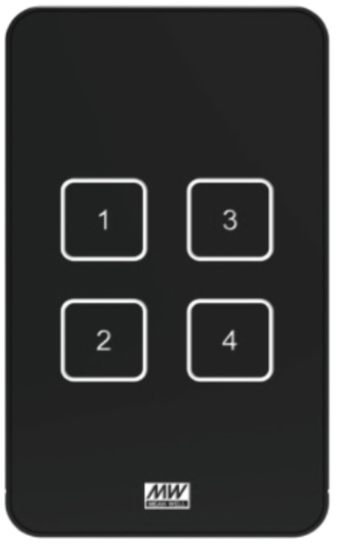

| DTP-204-U |  |
U-type | 4 | 120x70x26.5mm |

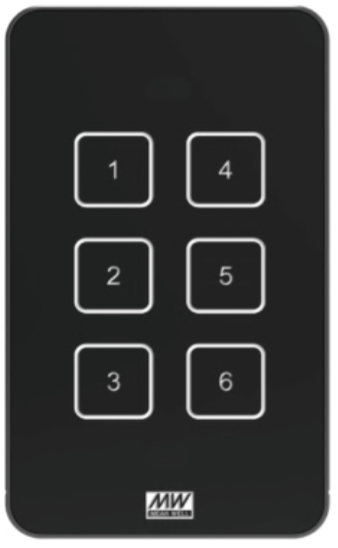

| DTP-206-U |  |
U-type | 6 | 120x70x26.5mm |
