In 2016 DAP-04EU changed name to DAP-04S01 |
Manufacturer: MEAN WELL
- Universal AC input / Full range ( up to 305VAC)
- Convert DALI signal to PWM signal
- 4 DALI addressable output channels
- Built-in push dim function
- Comply with DALI standards (lEC62386-101, 102, 207)
- PWM active high or active low selectable by jumper
- Linear or logarithm dimming curve selectable (comply with IEC62386-207)
- Dimming range: 1~ 100%
- Built-in relay for ON/OFF control of LED power supply
- Fully isolated plastic case
- Class II power unit, no FG
- IP20 design
- Power consumption < 0.5W (Note.1)
Price from €24.50 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDAP-04DALI to PWM converterIn stockWarranty: €24.50€30.14Login to check your price DAP-04DALI to PWM converterAvailability:In stockNet price:€24.50 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDAP-04-S01DALI to PWM converterIn stockWarranty: €24.70€30.38Login to check your price DAP-04-S01DALI to PWM converterAvailability:In stockNet price:€24.70
Description

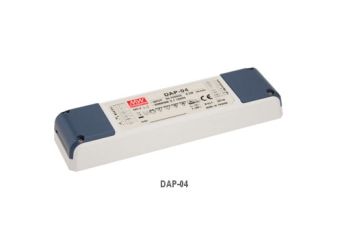

DAP-04-series is a "DALI signal to PWM signal" converter, specifically working with the MEAN WELL AC/DC LED power supplies with 3-in-1 dimming function (1 ~10V/ PWM / Resistance).
Available models:
- DAP-04 - Standard model with ACT-HI function
- DAP-04-S01 - Standard model with 4 or 1 DALI address selectable function (Note.2)
