NTS-250p
NTS series DC / AC converter with a power of 250W: NTS-250p-212, NTS-250p-224, NTS-250p-248
- Compact housing and low weight
- True sine wave at the output (THD <3%)
- Overload capacity up to 500W (60ms)
- Passive air circulation cooling
- Low power consumption in no load state (<1.5W)
- Wide range of allowable operating temperatures: -20 ~ + 70 ° C
- Device status LED Short-circuit, overload and temperature protection
- Reverse polarity protection, low and high voltage alarm on input
- Dedicated to lead-acid and lithium-ion batteries
- 3-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
High price? Log in and buy cheaper
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
NTS-250p
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNTS-250P-212DC/AC inverter 250W 10.5~15V-230V 50HzIn stockWarranty: €92.50€113.78Login to check your price NTS-250P-212DC/AC inverter 250W 10.5~15V-230V 50HzAvailability:In stockNet price:€92.50 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNTS-250P-224DC/AC inverter 250W 21~30V-230V 50HzIn stockWarranty: €92.50€113.78Login to check your price NTS-250P-224DC/AC inverter 250W 21~30V-230V 50HzAvailability:In stockNet price:€92.50 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNTS-250P-248DC/AC inverter 250W 42~60V-230V 50HzIn stockWarranty: €92.50€113.78Login to check your price NTS-250P-248DC/AC inverter 250W 42~60V-230V 50HzAvailability:In stockNet price:€92.50
Description

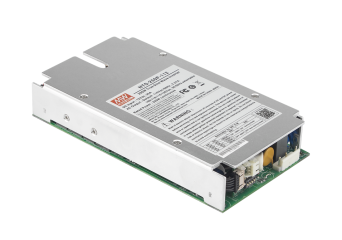

Compact DC / AC converter MEAN WELL NTS-250p with a rated power of 250W and real sine wave (true sine, THD> 3%) offers the user a configurable output voltage with values: 200/220/230 / 240VAC for models NTS-250p-212, NTS-250p-224, NTS-250p-248. The selection of the output voltage and frequency is easy with the use of a switch on the housing. The device can be powered by 12/24 / 48V DC with current values respectively: 25/13 / 7A. The converter works with both lithium-ion and lead-acid batteries.
The device is protected against excessive temperature, short-circuit and overcurrent. In order to minimize the risk of excessive battery discharge, the NTS-250p converter is equipped with an alarm. After the alarm is triggered and the voltage drops further, the device turns off, protecting the battery.
It is also possible to temporarily overload the converter: 287.5W (3 min.), 375W (10 s), 500W (0.6 s). This functionality allows you to connect a device with a higher inrush current (e.g. electric tools). The MEAN WELL NTS-250p converter can be used wherever there is no access to the power grid, e.g.
- Use in off-grid panels in home systems.
- For example, on a plot, a summer house
- Use with caravans and yachts to convert energy from batteries
- Application on construction sites: e.g. for battery operation of floodlights or electric tools
- Backup power, e.g. emergency lighting, small motors
Technical Specification
- NTS-250p: NTS series DC/AC converter with a power of 250W - SPECIFICATION
| Model | Power | Input VDC | Output VAC/Hz | Socket | Efiiciency | Dimensions |
| NTS-250p-212EU | 250W | 10-16.5 | 230/50 | EU | 92% | 186x100x33mm |
| NTS-250p-224EU | 250W | 20-33 | 230/50 | EU | 93% | 186x100x33mm |
| NTS-250p-248EU | 250W | 40-66 | 230/50 | EU | 93% | 186x100x33mm |
