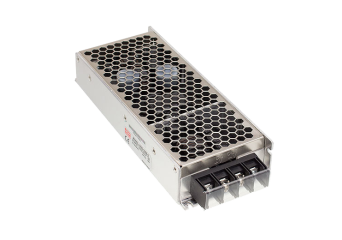

RSD-150
DC/DC converter with railway standard EN50155
- Compliance to EN50155 and EN45545-2 railway standard
- 2:1 wide input range
- Protections: Short circuit / Overload / Over voltage / Over temperature / Input reverse polarity
- 4000VDC l/O isolation
- Cooling by free air convection
- Half encapsulated
- Built-in constant current limiting circuit
- 1U low profile 40mm
- All using 105°C long life electrolytic capacitors
- LED indicator for power on
- 100% full load burn-in test
Price from €86.50 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRSD-150B-5DC/DC converter 150W 14.4~33.6V-5V 30AIn stockWarranty: €86.50€106.40Login to check your price RSD-150B-5DC/DC converter 150W 14.4~33.6V-5V 30AAvailability:In stockNet price:€86.50 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRSD-150B-12DC/DC converter 150W 14.4~33.6V-12V 12.5AIn stockWarranty: €86.50€106.40Login to check your price RSD-150B-12DC/DC converter 150W 14.4~33.6V-12V 12.5AAvailability:In stockNet price:€86.50 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRSD-150B-24DC/DC converter 150W 14.4~33.6V-24V 6.3AIn stockWarranty: €86.50€106.40Login to check your price RSD-150B-24DC/DC converter 150W 14.4~33.6V-24V 6.3AAvailability:In stockNet price:€86.50 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRSD-150C-5DC/DC converter 150W 28.8~67.2V-5V 30AOut of stock Warranty: €86.50€106.40Login to check your price RSD-150C-5DC/DC converter 150W 28.8~67.2V-5V 30AAvailability: Out of stockNet price:€86.50 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRSD-150C-12DC/DC converter 150W 28.8~67.2V-12V 12.5AIn stockWarranty: €86.50€106.40Login to check your price RSD-150C-12DC/DC converter 150W 28.8~67.2V-12V 12.5AAvailability:In stockNet price:€86.50 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRSD-150C-24DC/DC converter 150W 28.8~67.2V-24V 6.3AOut of stock Warranty: €86.50€106.40Login to check your price RSD-150C-24DC/DC converter 150W 28.8~67.2V-24V 6.3AAvailability: Out of stockNet price:€86.50 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRSD-150D-5DC/DC converter 150W 57.6~154V-5V 30AOut of stock Warranty: €86.50€106.40Login to check your price RSD-150D-5DC/DC converter 150W 57.6~154V-5V 30AAvailability: Out of stockNet price:€86.50 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRSD-150D-12DC/DC converter 150W 57.6~154V-12V 12.5AOut of stock Warranty: €86.50€106.40Login to check your price RSD-150D-12DC/DC converter 150W 57.6~154V-12V 12.5AAvailability: Out of stockNet price:€86.50 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRSD-150D-24DC/DC converter 150W 57.6~154V-24V 6.3AIn stockWarranty: €86.50€106.40Login to check your price RSD-150D-24DC/DC converter 150W 57.6~154V-24V 6.3AAvailability:In stockNet price:€86.50
Description
RSD series of single-output converters is designed for use in the railway industry (trams, trains, etc.). A wide range of input voltages and various output voltage configurations ensure high flexibility of applications. High quality, reliability, durability and long service life are the basic advantages of MEAN WELL inverters.
Technical Specification
-
RSD-150: 150W~151.2W DETAILS
Model Wejście Wyjście Zakłócenia Wydajność Wymiary RSD-150B-5 16.8~31.2V 5V, 0~30A 100mV 89% 189x77x36mm RSD-150B-12 16.8~31.2V 12V, 0~12.5A 120mV 89% 189x77x36mm RSD-150B-24 16.8~31.2V 24V, 0~6.3A 150mV 89% 189x77x36mm RSD-150C-5 33.6~62.4V 5V, 0~30A 100mV 90% 189x77x36mm RSD-150C-12 33.6~62.4V 12V, 0~12.5A 120mV 91% 189x77x36mm RSD-150C-24 33.6~62.4V 24V, 0~6.3A 150mV 91% 189x77x36mm RSD-150D-5 67.2~143V 5V, 0~30A 100mV 90% 189x77x36mm RSD-150D-12 67.2~143V 12V, 0~12.5A 120mV 91% 189x77x36mm RSD-150D-24 67.2~143V 24V, 0~4.2A 150mV 91% 189x77x36mm
