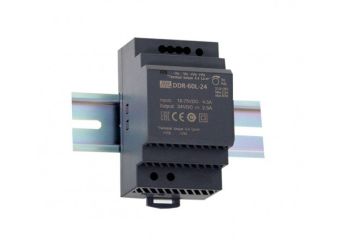

DDR-60
DIN rail type DC/DC converter: DDR-60L-12, DDR-60G-12, DDR-60G-24, DDR-60G-5, DDR-60L-15, DDR-60L-24, DDR-60L-5, DDR-60G-15
Manufacturer: MEAN WELL
Manufacturer: MEAN WELL
- Width only 52.5mm (1SU)
- 4:1 ultra wide input range
- -40~+85°C wide working temperature
- No minimum load required
- DC output adjustable (±10%)
- Cooling by free air convection
- Can be installed on DIN rail TS-35/7.5 or 15
- Protections: Short circuit / Overload / Over voltage / Input reverse polarity / Input under voltage protection
- 4KVdc I/O isolation(Reinforced isolation)
Price from €30.00 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDDR-60L-12DC/DC converter 60W 18~75V-12V 5AIn delivery Warranty: €30.00€36.90Login to check your price DDR-60L-12DC/DC converter 60W 18~75V-12V 5AAvailability: In deliveryNet price:€30.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDDR-60G-12DC/DC converter 60W 9~36V-12V 5AIn stockWarranty: €30.00€36.90Login to check your price DDR-60G-12DC/DC converter 60W 9~36V-12V 5AAvailability:In stockNet price:€30.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDDR-60G-24DC/DC converter 60W 9~36V-24V 2.5AIn stockWarranty: €30.00€36.90Login to check your price DDR-60G-24DC/DC converter 60W 9~36V-24V 2.5AAvailability:In stockNet price:€30.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDDR-60G-5DC/DC converter 54W 9~36V-5V 10.8AIn stockWarranty: €30.00€36.90Login to check your price DDR-60G-5DC/DC converter 54W 9~36V-5V 10.8AAvailability:In stockNet price:€30.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDDR-60L-15DC/DC converter 60W 18~75V-15V 4AIn stockWarranty: €30.00€36.90Login to check your price DDR-60L-15DC/DC converter 60W 18~75V-15V 4AAvailability:In stockNet price:€30.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDDR-60L-24DC/DC converter 60W 18~75V-24V 2.5AIn stockWarranty: €30.00€36.90Login to check your price DDR-60L-24DC/DC converter 60W 18~75V-24V 2.5AAvailability:In stockNet price:€30.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDDR-60L-5DC/DC converter 60W 18~75V-5V 12AIn stockWarranty: €30.00€36.90Login to check your price DDR-60L-5DC/DC converter 60W 18~75V-5V 12AAvailability:In stockNet price:€30.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDDR-60G-15DC/DC converter 60W 9~36V-15V 4AOut of stock Warranty: €30.00€36.90Login to check your price DDR-60G-15DC/DC converter 60W 9~36V-15V 4AAvailability: Out of stockNet price:€30.00
Description
DDR-60 series is a 60W DIN Rail type DC-DC converter with main features including DIN rail-type easy installation, ultra slim width (52.5mm), 4:1 ultra wide input voltage, -40~+85°C wide operating temperature, 4KVdc I/O isolation, adjustable output voltage (±10%) and full protective functions...etc.
This series has two input options: 9~36V /18~75V and various output options: 5V/12V/15V/24V and can be used for industrial control, security control, communication system and other fields. Suitable applications are DC buck/boost regulator, increasing system insulation level and voltage drop compensation along cable...etc.
Available models:
- 5V: DDR-60G-5, DDR-60L-5
- 12V: DDR-60G-12, DDR-60L-12
- 15V: DDR-60G-15, DDR-60L-15
- 24V: DDR-60G-24, DDR-60L-24
Technical Specification
DDR-60: 54W~60W DETAILS
| Model | Input | Output | Ripple & noise | Efficiency | Dimension |
| DDR-60G-5 | 9~36V | 5V, 0~10.8A | 60mV | 87.5% | 52.5x90x54.5mm |
| DDR-60G-12 | 9~36V | 12V, 0~5A | 75mV | 91% | 52.5x90x54.5mm |
| DDR-60G-15 | 9~36V | 15V, 0~4A | 75mV | 91% | 52.5x90x54.5mm |
| DDR-60G-24 | 9~36V | 24V, 0~2.5A | 100mV | 91% | 52.5x90x54.5mm |
| DDR-60L-5 | 18~75V | 5V, 0~12A | 60mV | 87.5% | 52.5x90x54.5mm |
| DDR-60L-12 | 18~75V | 12V, 0~5A | 75mV | 91% | 52.5x90x54.5mm |
| DDR-60L-15 | 18~75V | 15V, 0~4A | 75mV | 92% | 52.5x90x54.5mm |
| DDR-60L-24 | 18~75V | 24V, 0~2.5A | 100mV | 92% | 52.5x90x54.5mm |
