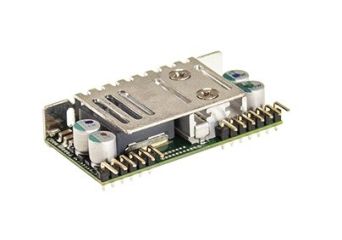

NID100 - Non-Isolated DC/DC Converter
On board DC/DC converters: NID100-12, NID100-15, NID100-24, NID100-5
- Economical open frame design
- Wide input range
- High efficiency up to 97%
- Remote ON / OFF control
- Compact size 2.0"x1.082"x 0.472"(SIP package)
- Protections: Short circuit / Overload / Over voltage
- -30~+85°C wide working temperature
- Cooling by free air convection
- Comply to EN55032 ClassA without additional components
- Trimming output (optional)
Price from €11.30 Net price
High price? Log in and buy cheaper
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
NID100 - Non-Isolated DC/DC Converter
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNID100-12DC/DC converter 90W 20~53V/12V 7.5AOut of stock Warranty: €11.30€13.90Login to check your price NID100-12DC/DC converter 90W 20~53V/12V 7.5AAvailability: Out of stockNet price:€11.30 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNID100-15DC/DC converter 97.5W 20~53V/15V 6.5AOut of stock Warranty: €11.30€13.90Login to check your price NID100-15DC/DC converter 97.5W 20~53V/15V 6.5AAvailability: Out of stockNet price:€11.30 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNID100-24DC/DC converter 100.8W 30~53V/24V 4.2AOut of stock Warranty: €11.30€13.90Login to check your price NID100-24DC/DC converter 100.8W 30~53V/24V 4.2AAvailability: Out of stockNet price:€11.30 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNID100-5DC/DC converter 55W 10.5~53V/5V 11AOut of stock Warranty: €11.30€13.90Login to check your price NID100-5DC/DC converter 55W 10.5~53V/5V 11AAvailability: Out of stockNet price:€11.30
Description
- Economical open frame design
- Wide input range
- High efficiency up to 97%
- Remote ON / OFF control
- Compact size 2.0"x1.082"x0.472"(SIP package)
- Protections: Short circuit / Overload / Over voltage
- -30~+85°C wide working temperature
- Cooling by free air convection
- Comply to EN55032 ClassA without additional components
- Trimming output (optional)
Available models:
- 5V: NID100-5
- 12V: NID100-12
- 15V: NID100-15
- 24V: NID100-24
Technical Specification
NID100: 55~100W DETAILS
| Model | Input | Output | Ripple & noise | Efficiency | Dimension |
| NID100-5 | 10.5~53V | 5V, 11A | 100mV | 92% | 50.8x27.5x12mm |
| NID100-12 | 20~53V | 12V, 7.5A | 120mV | 95% | 50.8x27.5x12mm |
| NID100-15 | 20~53V | 15V, 6.5A | 150mV | 95% | 50.8x27.5x12mm |
| NID100-24 | 30~53V | 24V, 4.2A | 200mV | 96% | 50.8x27.5x12mm |
