- DIP24 package with industry standard pinout
- 8:1 (9-75 VDC) ultra-wide input range
- Operating temperature range -40~+95℃
- No minimum load required
- Comply to BS EN/EN55032 radiated Class A without additional components
- High efficiency up to 88%
- Protections: Short circuit (Continuous) / Overload / Over voltage / UVLO
- Remote ON/OFF control
- 3 kVDC I/O isolation
- 3 years warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
High price? Log in and buy cheaper
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only

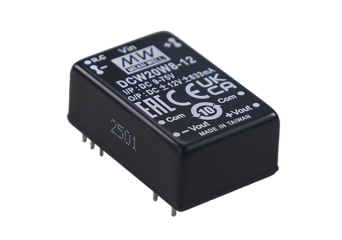

DCW20W8
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDCW20W8-12DC/DC module 20W 9~75V ±12V ±0.833AOut of stock Warranty: €20.60€25.34Login to check your price DCW20W8-12DC/DC module 20W 9~75V ±12V ±0.833AAvailability: Out of stockNet price:€20.60 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDCW20W8-15DC/DC module 20W 9~75V/ ±15V ±0.666AOut of stock Warranty: €20.60€25.34Login to check your price DCW20W8-15DC/DC module 20W 9~75V/ ±15V ±0.666AAvailability: Out of stockNet price:€20.60
Description
SCW20W8 and DCW20W8 series are 20W isolated and regulated module type DC-DC converter with DIP24 package. It features international standard pins, a high efficiency up to 88%, wide working temperature range -40~+95℃, 3KVdc I/P-O/P isolation voltage, Compliance to BS EN/EN55032 radiated Class A without additional components, continuous-mode short circuit protection, 8:1(9~75V) ultra-wide input range, and various output voltage, 3.3V, 5V, 12V, 15V, 24V for single output and ±12V, ±15V for dual outputs, which are suitable for all kinds of systems, Such as industrial control, telecommunication field, distributed power architecture, and so on.
Technical Specification
DCW20W8: 20W dual output DC/DC converter → Link to manufacturer documentation (specification, reports, certificates, others)
| Model | Input voltage | Input current (no load) |
Output voltage | Output current | Output ripple & noise | Efficiency | Dimension (LxWxH) |
|---|---|---|---|---|---|---|---|
| DCW20W8-12 | 9-75 VDC | 10 mA | ±12 VDC | ±833 mA | 1% of output voltage | 87% | 31.8 x 20.3 x 12.2 mm |
| DCW20W8-15 | 9-75 VDC | 10 mA | ±15 VDC | ±666 mA | 1% of output voltage | 87% | 31.8 x 20.3 x 12.2 mm |
