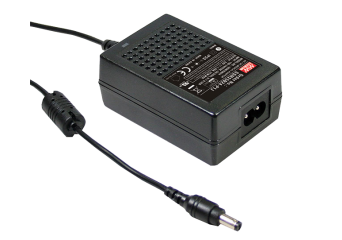

P1J DC adapters
Price from €0.50 Net price
If placed an order by 3 p.m., the package will be shipped the same day In stock
Manufacturer: MEAN WELL
- Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1/-1-11 , EN60601-1/-1-11
- Extremely low leakage current
- Energy efficiency Level VI and meet COC version 5 ( except 5-9V for Level V)
- -25~60°C wide range working temperature
- Protections: Short circuit / Overload / Over voltage
- LED indicator for power on
Price from €14.10 Net price
High price? Log in and buy cheaper
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use onlyModels
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddGSM25B05-P1Jdesktop power supply EU 25W 5V 4AOut of stock Warranty: €14.10€17.34Login to check your price GSM25B05-P1Jdesktop power supply EU 25W 5V 4AAvailability: Out of stockNet price:€14.10 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddGSM25B07-P1Jdesktop power supply EU 25W 7.5V 2.93AOut of stock Warranty: €14.10€17.34Login to check your price GSM25B07-P1Jdesktop power supply EU 25W 7.5V 2.93AAvailability: Out of stockNet price:€14.10 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddGSM25B09-P1Jdesktop power supply EU 25W 9V 2.77AOut of stock Warranty: €14.10€17.34Login to check your price GSM25B09-P1Jdesktop power supply EU 25W 9V 2.77AAvailability: Out of stockNet price:€14.10 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddGSM25B12-P1Jdesktop power supply EU 25W 12V 2.08AOut of stock Warranty: €14.10€17.34Login to check your price GSM25B12-P1Jdesktop power supply EU 25W 12V 2.08AAvailability: Out of stockNet price:€14.10 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddGSM25B15-P1Jdesktop power supply EU 25W 15V 1.66AOut of stock Warranty: €14.10€17.34Login to check your price GSM25B15-P1Jdesktop power supply EU 25W 15V 1.66AAvailability: Out of stockNet price:€14.10 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddGSM25B18-P1Jdesktop power supply EU 25W 18V 1.38AOut of stock Warranty: €14.10€17.34Login to check your price GSM25B18-P1Jdesktop power supply EU 25W 18V 1.38AAvailability: Out of stockNet price:€14.10 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddGSM25B24-P1Jdesktop power supply EU 25W 24V 1.04AOut of stock Warranty: €14.10€17.34Login to check your price GSM25B24-P1Jdesktop power supply EU 25W 24V 1.04AAvailability: Out of stockNet price:€14.10 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddGSM25B48-P1Jdesktop power supply EU 25W 48V 0.52AOut of stock Warranty: €14.10€17.34Login to check your price GSM25B48-P1Jdesktop power supply EU 25W 48V 0.52AAvailability: Out of stockNet price:€14.10
Accessories
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add2-pin EU plug without FG + IEC320-C7 INLETIn stockWarranty: €2.40€2.95Login to check your price 2-pin EU plug without FG + IEC320-C7 INLETAvailability:In stockNet price:€2.40 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add2-pin EU plug with FG + IEC320-C13 INLETIn stockWarranty: €4.10€5.04Login to check your price 2-pin EU plug with FG + IEC320-C13 INLETAvailability:In stockNet price:€4.10
Useful products
Description
- Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1/-1-11 , EN60601-1/-1-11
- Extremely low leakage current
- Energy efficiency Level VI and meet COC version 5 ( except 5-9V for Level V)
- -25~60°C wide range working temperature
- Protections: Short circuit / Overload / Over voltage
- LED indicator for power on
Available models:
- 5V: GSM18B05-P1J, GSM25B05-P1J, GSM36B05-P1J, GSM40A05-P1J, GSM40B05-P1J, GSM60A05-P1J, GSM60B05-P1J
- 7V: GSM36B07-P1J
- 7.5V: GSM18B07-P1J, GSM25B07-P1J, GSM40A07-P1J, GSM40B07-P1J, GSM60A07-P1J, GSM60B07-P1J
- 9V: GSM18B09-P1J, GSM25B09-P1J, GSM36B09-P1J, GSM40A09-P1J, GSM40B09-P1J, GSM60A09-P1J, GSM60B09-P1J
- 12V: GSM18B12-P1J, GSM25B12-P1J, GSM36B12-P1J, GSM40A12-P1J, GSM40B12-P1J, GSM60A12-P1J, GSM60B12-P1J
- 15V: GSM18B15-P1J, GSM25B15-P1J, GSM36B15-P1J, GSM40A15-P1J, GSM40B15-P1J, GSM60A15-P1J, GSM60B15-P1J
- 18V: GSM18B18-P1J, GSM25B18-P1J, GSM36B18-P1J, GSM40A18-P1J, GSM40B18-P1J, GSM60A18-P1J, GSM60B18-P1J
- 24V: GSM18B24-P1J, GSM25B24-P1J, GSM36B24-P1J, GSM40A24-P1J, GSM40B24-P1J, GSM60A24-P1J, GSM60B24-P1J
- 48V: GSM18B48-P1J, GSM25B48-P1J, GSM36B48-P1J, GSM40A48-P1J, GSM40B48-P1J, GSM60A48-P1J, GSM60B48-P1J
Technical Specification
-
GSM25B: 20~25W DETAILS
Model Output Tolerance Ripple & noise Efficiency Plug Dimension GSM25B05-P1J 5V, 0~4A +/-5% 60mV 81% P1J 2.1Øx5.5Øx11mm 79x54x33mm GSM25B07-P1J 7.5V, 0~2.93A +/-5% 80mV 83% P1J 2.1Øx5.5Øx11mm 79x54x33mm GSM25B09-P1J 9V, 0~2.77A +/-5% 80mV 84% P1J 2.1Øx5.5Øx11mm 79x54x33mm GSM25B12-P1J 12V, 0~2.08A +/-3% 120mV 86% P1J 2.1Øx5.5Øx11mm 79x54x33mm GSM25B15-P1J 15V, 0~1.66A +/-3% 120mV 87% P1J 2.1Øx5.5Øx11mm 79x54x33mm GSM25B18-P1J 18V, 0~1.38A +/-3% 150mV 87% P1J 2.1Øx5.5Øx11mm 79x54x33mm GSM25B24-P1J 24V, 0~1.04A +/-2% 180mV 87% P1J 2.1Øx5.5Øx11mm 79x54x33mm GSM25B48-P1J 48V, 0~0.52A +/-2% 240mV 88% P1J 2.1Øx5.5Øx11mm 79x54x33mm
