P1J DC adapters
Price from €0.50 Net price
If placed an order by 3 p.m., the package will be shipped the same day In stock
Manufacturer: MEAN WELL
- Wide input voltage range 80-264 VAC, 113-370 VDC
- Energy efficiency - level VI
- for medical devices (2xMOPP)
- active PFC
- low leakage current <100 uA
- no-load power consumption <0.15 W
- Compliant with EISA 2007, EU ErP
- 1st class of insulation
- Protection: short circuit, overvoltage, overload, temperature
- LED operation signaling
- Working temperature -30 - 70 ° C
- Compliance with many standards and certificates
- 3-year warranty
Price from €30.30 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use onlyModels
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddGSM90A12-P1Mdesktop power supply 90W 12V 6.67AOut of stock Warranty: €30.30€37.27Login to check your price GSM90A12-P1Mdesktop power supply 90W 12V 6.67AAvailability: Out of stockNet price:€30.30 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddGSM90A15-P1Mdesktop power supply 90W 15V 6AOut of stock Warranty: €30.30€37.27Login to check your price GSM90A15-P1Mdesktop power supply 90W 15V 6AAvailability: Out of stockNet price:€30.30 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddGSM90A19-P1Mdesktop power supply 90W 19V 4.74AOut of stock Warranty: €30.30€37.27Login to check your price GSM90A19-P1Mdesktop power supply 90W 19V 4.74AAvailability: Out of stockNet price:€30.30 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddGSM90A24-P1Mdesktop power supply 90W 24V 3.75AIn stockWarranty: €30.30€37.27Login to check your price GSM90A24-P1Mdesktop power supply 90W 24V 3.75AAvailability:In stockNet price:€30.30 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddGSM90A48-P1Mdesktop power supply 90W 48V 1.87AOut of stock Warranty: €30.30€37.27Login to check your price GSM90A48-P1Mdesktop power supply 90W 48V 1.87AAvailability: Out of stockNet price:€30.30
Accessories
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add2-pin EU plug without FG + IEC320-C7 INLETIn stockWarranty: €2.40€2.95Login to check your price 2-pin EU plug without FG + IEC320-C7 INLETAvailability:In stockNet price:€2.40 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add2-pin EU plug with FG + IEC320-C13 INLETIn stockWarranty: €4.10€5.04Login to check your price 2-pin EU plug with FG + IEC320-C13 INLETAvailability:In stockNet price:€4.10
Useful products
Description

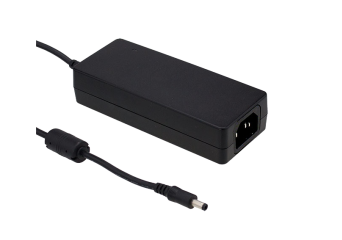

Desktop type medical power supplies are designed to power a wide range of medical equipment. They are characterized by very good parameters, compliance with the VI level of energy efficiency, and low power consumption in no-load condition. The set does not include a power cord. GSM series power supplies can also be used to power devices operating at low temperatures, including switches, converters, routers, laptops, stationary phones, printers, etc.
Technical Specification
-
GSM90A: 80~90W DETAILS
Model Output Tolerance Ripple & noise Efficiency Plug Dimension GSM90A12-P1J 12V, 0~6.67A +/-5% 120mV 89% 2.5Øx5.5Øx11mm 145x60x32mm GSM90A15-P1J 15V, 0~6A +/-5% 150mV 89% 2.5Øx5.5Øx11mm 145x60x32mm GSM90A19-P1J 19V, 0~4.74A +/-4% 180mV 90% 2.5Øx5.5Øx11mm 145x60x32mm GSM90A24-P1J 24V, 0~3.75A +/-3% 200mV 90% 2.5Øx5.5Øx11mm 145x60x32mm GSM90A48-P1J 48V, 0~1.87A +/-2.5% 240mV 91% 2.5Øx5.5Øx11mm 145x60x32mm
