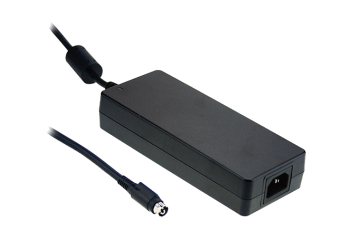

GST160A
Desktop power supply
-
- Wide input voltage range 85-264 VAC, 127-370 VDC
- Energy efficiency - level VI
- Efficiency up to 94.5%
- Active PFC
- No-load power consumption <0.15 W
- Compliant with EISA 2007, EU ErP
- Protection: short circuit, overvoltage, overload, temperature
- 1st class of protection
- AC input: IEC320-C14
- LED operation signaling
- Working temperature -30 - 70 ° C
- Fully enclosed plastic housing, no fan
- Compliance with many standards and certificates
- 3-year warranty
Cables for power supplies are available at the bottom of the page under the "Accessories and additions" tab
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Price from €45.40 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use onlyModels
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddGST160A12-R7Bdesktop power supply 160W 12V 11.5AIn stockWarranty: €45.40€55.84Login to check your price GST160A12-R7Bdesktop power supply 160W 12V 11.5AAvailability:In stockNet price:€45.40 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddGST160A15-R7Bdesktop power supply 160W 15V 9.6AOut of stock Warranty: €45.40€55.84Login to check your price GST160A15-R7Bdesktop power supply 160W 15V 9.6AAvailability: Out of stockNet price:€45.40 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddGST160A20-R7Bdesktop power supply 160W 20V 8AOut of stock Warranty: €45.40€55.84Login to check your price GST160A20-R7Bdesktop power supply 160W 20V 8AAvailability: Out of stockNet price:€45.40 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddGST160A24-R7Bdesktop power supply 160W 24V 6.67AIn stockWarranty: €45.40€55.84Login to check your price GST160A24-R7Bdesktop power supply 160W 24V 6.67AAvailability:In stockNet price:€45.40 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddGST160A36-R7Bdesktop power supply 160W 36V 4.44AIn stockWarranty: €45.40€55.84Login to check your price GST160A36-R7Bdesktop power supply 160W 36V 4.44AAvailability:In stockNet price:€45.40 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddGST160A48-R7Bdesktop power supply 160W 48V 3.34AOut of stock Warranty: €45.40€55.84Login to check your price GST160A48-R7Bdesktop power supply 160W 48V 3.34AAvailability: Out of stockNet price:€45.40
Accessories
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add2-pin EU plug with FG + IEC320-C13 INLETIn stockWarranty: €4.10€5.04Login to check your price 2-pin EU plug with FG + IEC320-C13 INLETAvailability:In stockNet price:€4.10
Useful products
Description
GST is a highly reliable, 90W desktop style single-output green adaptor series. This product is a class I power unit (with FG), equipped with a standard IEC320-C14 AC inlet and adopting the input range from 90VAC to 264VAC. The entire series supplies different models with output voltages ranging between 12VDC and 48VDC that can satisfy the demands for various types of consumer electronic devices.
With the extremely low no-load power consumption, GST is compliant with USA EISA 2007/D0E, Canada NRCan, Australia and New Zealand MEPS, Korea K-MEPS, EU ErP and Code of Conduct (COC) Version 5. The supreme feature allows the adaptor to save the energy when it is either under the operating mode or the standby mode. The entire series utilizes the 94V-0 flame retardant plastic case. GST is certified for the international safety regulations.
Available models:
- 12V: GST160A12-P1J, GST220A12-P1J, GST280A12-P1J
- 15V: GST160A15-P1J, GST220A15-P1J, GST280A15-P1J
- 20V: GST160A20-P1J, GST220A20-P1J, GST280A20-P1J
- 24V: GST160A24-P1J, GST220A24-P1J, GST280A24-P1J
- 48V: GST160A48-P1J, GST220A48-P1J, GST280A48-P1J
Technical Specification
-
GST160A: 138~160W DETAILS
Model Output Tolerance Ripple & noise Efficiency Plug Dimension GST160A12-P1J 12V, 0~11.5A +/-5% 80mV 90% DIN 4P 175x72x35mm GST160A15-P1J 15V, 0~9.6A +/-5% 100mV 91% DIN 4P 175x72x35mm GST160A20-P1J 20V, 0~8A +/-4% 150mV 93% DIN 4P 175x72x35mm GST160A24-P1J 24V, 0~6.67A +/-3% 180mV 93% DIN 4P 175x72x35mm GST160A48-P1J 48V, 0~3.34A +/-2.5% 240mV 94% DIN 4P 175x72x35mm
