P1J DC adapters
Price from €0.50 Net price
If placed an order by 3 p.m., the package will be shipped the same day In stock
Manufacturer: MEAN WELL
- Wide input voltage range 90-264 VAC, 127-370 VDC
- Energy efficiency - level VI
- No-load power consumption <0.15 W
- Compliant with EISA 2007, EU ErP
- Protections: short circuit, overvoltage and overload protection
- Temperature protection
- 1st class of protection
- AC input: IEC320-C14
- LED operation signaling
- Working temperature -30 - 70 ° C
- Fully enclosed plastic housing
- Compliance with many standards and certificates
- 3-year warranty
Cables for power supplies are available at the bottom of the page under the "Accessories and additions" tab
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Price from €26.60 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddGST90A12-P1Mdesktop power supply 90W 12V 6.67AIn stockWarranty: €26.60€32.72Login to check your price GST90A12-P1Mdesktop power supply 90W 12V 6.67AAvailability:In stockNet price:€26.60 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddGST90A15-P1Mdesktop power supply 90W 15V 6AIn stockWarranty: €26.60€32.72Login to check your price GST90A15-P1Mdesktop power supply 90W 15V 6AAvailability:In stockNet price:€26.60 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddGST90A19-P1Mdesktop power supply 90W 19V 4.74AIn stockWarranty: €26.60€32.72Login to check your price GST90A19-P1Mdesktop power supply 90W 19V 4.74AAvailability:In stockNet price:€26.60 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddGST90A24-P1Mdesktop power supply 90W 24V 3.75AIn delivery Warranty: €26.60€32.72Login to check your price GST90A24-P1Mdesktop power supply 90W 24V 3.75AAvailability: In deliveryNet price:€26.60 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddGST90A48-P1Mdesktop power supply 90W 48V 1.87AIn delivery Warranty: €26.60€32.72Login to check your price GST90A48-P1Mdesktop power supply 90W 48V 1.87AAvailability: In deliveryNet price:€26.60
Accessories
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add2-pin EU plug with FG + IEC320-C13 INLETIn stockWarranty: €4.00€4.92Login to check your price 2-pin EU plug with FG + IEC320-C13 INLETAvailability:In stockNet price:€4.00
Useful products
Description

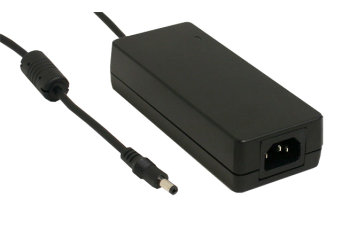

GST is a highly reliable, 90W desktop style single-output green adaptor series. This product is a class I power unit (with FG), equipped with a standard IEC320-C14 AC inlet and adopting the input range from 90VAC to 264VAC. The entire series supplies different models with output voltages ranging between 12VDC and 48VDC that can satisfy the demands for various types of consumer electronic devices.
With extremely low no-load power consumption, GST is compliant with USA EISA 2007/D0E, Canada NRCan, Australia and New Zealand MEPS, Korea K-MEPS, EU ErP and Code of Conduct (COC) Version 5. The supreme feature allows the adaptor to save the energy when it is either under the operating mode or the standby mode. The entire series utilizes the 94V-0 flame retardant plastic case. GST is certified for the international safety regulations.
Available models:
- 5V: GST40A05-P1J, GST60A05-P1J
- 7.5V: GST40A07-P1J, GST60A07-P1J
- 9V: GST40A09-P1J, GST60A09-P1J
- 12V: GST40A12-P1J, GST60A12-P1J, GST90A12-P1J, GST120A12-P1J
- 15V: GST40A15-P1J, GST60A15-P1J, GST90A15-P1J, GST120A15-P1J
- 18V: GST40A18-P1J, GST60A18-P1J
- 19V: GST90A19-P1J
- 20V: GST120A20-P1J
- 24V: GST40A24-P1J, GST60A24-P1J, GST90A24-P1J, GST120A24-P1J
- 48V: GST40A48-P1J, GST60A48-P1J, GST90A48-P1J, GST120A48-P1J
Technical Specification
-
GST90A: 80~90W DETAILS
Model Output Tolerance Ripple & noise Efficiency Plug Dimension GST90A12-P1J 12V, 0~6.67A +/-5% 120mV 89% 2.5Øx5.5Øx11mm 145x60x32mm GST90A15-P1J 15V, 0~6A +/-5% 150mV 89.5% 2.5Øx5.5Øx11mm 145x60x32mm GST90A19-P1J 19V, 0~4.74A +/-4% 180mV 90% 2.5Øx5.5Øx11mm 145x60x32mm GST90A24-P1J 24V, 0~3.75A +/-3% 200mV 90% 2.5Øx5.5Øx11mm 145x60x32mm GST90A48-P1J 48V, 0~1.87A +/-2.5% 240mV 91% 2.5Øx5.5Øx11mm 145x60x32mm
