SDR-240

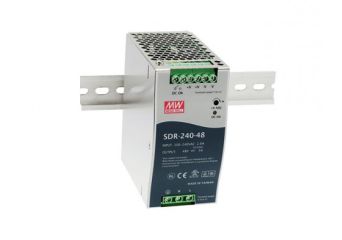

High efficiency DIN rail power supply: SDR-240-24, SDR-240-48
- High efficiency 94% and low power dissipation
- 150% peak load capability
- Built-in active PFC function, PF>0.93
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- Can be installed on DIN rail TS-35/7.5 or 15
- UL 508 (industrial control equipment) approved
- EN61000-6-2(EN50082-2) industrial immunity level
- Built-in DC OK relay contact
- 100% full load burn-in test
Price from €85.00 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSDR-240-24DIN rail power supply 240W 24V 10AIn stockWarranty: €85.00€104.55Login to check your price SDR-240-24DIN rail power supply 240W 24V 10AAvailability:In stockNet price:€85.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSDR-240-48DIN rail power supply 240W 48V 5AIn stockWarranty: €85.00€104.55Login to check your price SDR-240-48DIN rail power supply 240W 48V 5AAvailability:In stockNet price:€85.00
Description
- High efficiency 94% and low power dissipation
- 150% peak load capability
- Built-in active PFC function, PF>0.93
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- Can be installed on DIN rail TS-35/7.5 or 15
- UL 508 (industrial control equipment) approved
- EN61000-6-2(EN50082-2) industrial immunity level
- Built-in DC OK relay contact
- 100% full load burn-in test
Available models:
- 24V: SDR-240-24
- 48V: SDR-240-48
Technical Specification
SDR-240: 240W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Dimension |
| SDR-240-24 | 24V, 0~10A | +/-1% | 100mV | 94% | 63x125.2x113.5mm |
| SDR-240-48 | 48V, 0~5A | +/-1% | 120mV | 94% | 63x125.2x113.5mm |
