NOTE: DR-60 series is phased-out by the manufacturer and are available while stock lasts. As a replacement we suggest HDR-60 series |
DR-60

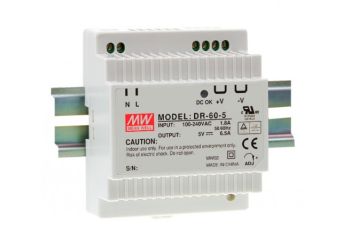

Industrial DIN rail power supply: DR-60-5, DR-60-12, DR-60-15, DR-60-24
Manufacturer: MEAN WELL
Manufacturer: MEAN WELL
- Universal AC input/Full range
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- Can be installed on DIN rail TS-35/7.5 or 15
- UL508 (industrial control equipment) approved
- LED indicator for power on
- Isolation class II
- 100% full load burn-in test
Price from €25.90 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDR-60-5DIN rail power supply 30W 5V 6.5AIn stockWarranty: €25.90€31.86Login to check your price DR-60-5DIN rail power supply 30W 5V 6.5AAvailability:In stockNet price:€25.90
Description
- Universal AC input/Full range
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- Can be installed on DIN rail TS-35/7.5 or 15
- UL508 (industrial control equipment) approved
- LED indicator for power on
- Isolation class II
- 100% full load burn-in test
Available models:
- 5V: DR-60-5
- 12V: DR-60-12
- 15V: DR-60-15
- 24V: DR-60-24
Technical Specification
DR-60: 32.5-60W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Dimension |
| DR-60-5 | 5V, 0~6.5A | +/-2% | 80mV | 76% | 78x93x56mm |
| DR-60-12 | 12V, 0~4.5A | +/-1% | 120mV | 82% | 78x93x56mm |
| DR-60-15 | 15V, 0~4.0A | +/-1% | 120mV | 83% | 78x93x56mm |
| DR-60-24 | 24V, 0~2.5A | +/-1% | 150mV | 84% | 78x93x56mm |
