NOTE: DRT-240 series is phased-out by the manufacturer and are available while stock lasts. As a replacement we suggest TDR-240 series. |
DRT-240

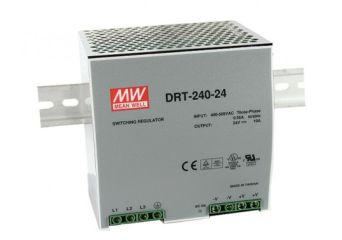

240W three phase industrial DIN rail power supply: DRT-240-24, DRT-240-48
Manufacturer: MEAN WELL
Manufacturer: MEAN WELL
- Three-Phase AC 340~550V wide range input
- High efficiency 89% and low dissipation
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- Built-in constant current limiting circuit
- Can be installed on DIN rail TS-35/7.5 or 15
- UL 508(industrial control equipment)approved
- EN61000-6-2(EN50082-2) industrial immunity level
- 100% full load burn-in test
- Fixed switching frequency at 70KHz
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Description
- Three-Phase AC 340~550V wide range input
- High efficiency 89% and low dissipation
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- Built-in constant current limiting circuit
- Can be installed on DIN rail TS-35/7.5 or 15
- UL 508(industrial control equipment)approved
- EN61000-6-2(EN50082-2) industrial immunity level
- 100% full load burn-in test
- Fixed switching frequency at 70KHz
Available models:
- 24V: DRT-240-24
- 48V: DRT-240-48
Technical Specification
DRT-240: 240W DETILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Dimension |
| DRT-240-24 | 24V, 0~10A | +/-1% | 80mV | 89% | 125.5x125.2x100mm |
| DRT-240-48 | 48V, 0~5A | +/-1% | 80mV | 89% | 125.5x125.2x100mm |
