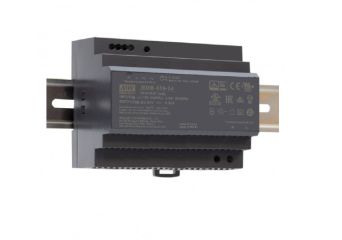

HDR-150
Industrial DIN rail power supply: HDR-150-12, HDR-150-15, HDR-150-24, HDR-150-48
- Ultra slim design with 105mm (6SU) width
- Universal input 85~264VAC (277VAC operational}
- No load power consumption<0.3W
- lsolation class Ⅱ
- DC output voltage adjustable
- Protections : Short circuit / Overload / Over voltage
- Cooling by free air convection
- DIN rail TS-35/7.5 or 15 mountable
- Over voltage category Ⅲ
- LED indicator for power on
High price? Log in and buy cheaper
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHDR-150-12DIN rail power supply 135W 12V 11.3AIn stockWarranty: €33.00€40.59Login to check your price HDR-150-12DIN rail power supply 135W 12V 11.3AAvailability:In stockNet price:€33.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHDR-150-15DIN rail power supply 142W 15V 9.5AIn delivery Warranty: €33.00€40.59Login to check your price HDR-150-15DIN rail power supply 142W 15V 9.5AAvailability: In deliveryNet price:€33.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHDR-150-24DIN rail power supply 150W 24V 6.25AIn stockWarranty: €33.00€40.59Login to check your price HDR-150-24DIN rail power supply 150W 24V 6.25AAvailability:In stockNet price:€33.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddHDR-150-48DIN rail power supply 154W 48V 3.2AIn stockWarranty: €33.00€40.59Login to check your price HDR-150-48DIN rail power supply 154W 48V 3.2AAvailability:In stockNet price:€33.00
Description
HDR-150 is an economical ultra slim 150W DlN rail power supply series, adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed 105mm (6SU) in width, which allows space saving inside the cabinets. The entire series adopts the full range AC input from 85VAC to 264VAC (277VAC operational) and conforms to EN61000-3-2, the norm the European Union regulates for harmonic current. HDR-150 is designed with plastic housing that it can effectively prevent user from electric hazards. With working efficiency up to 90.5%, the entire series can operate at the ambient temperature between -30℃ and 70℃ under air convection. The complete protection functions and relevant certificates for home automations and industrial control apparatus (lEC62368-1,UL62368-1,UL61010, EN61558-2-16) make HDR-150 a very competitive power supply solution for household and industrial applications.
Available models:
- 12V: HDR-150-12
- 15V: HDR-150-15
- 24V: HDR-150-24
- 48V: HDR-150-48
Technical Specification
- HDR-150: 87~92W details
| Model | Output | Tolerance | Ripple & noise | Efficiency | Dimension |
| HDR-150-12 | 12V, 0~11.3A | +/-2% | 100mV | 89% | 105x90x54.5mm |
| HDR-150-15 | 15V, 0~9.5A | +/-1% | 120mV | 89.5% | 105x90x54.5mm |
| HDR-150-24 | 24V, 0~6.25A | +/-1% | 150mV | 90.5% | 105x90x54.5mm |
| HDR-150-48 | 48V, 0~3.2A | +/-1% | 200mV | 90.5% | 105x90x54.5mm |
