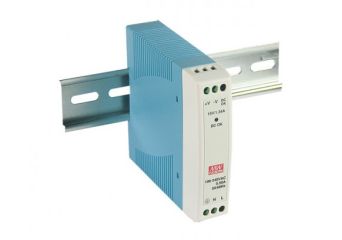

MDR-10
Industrial DIN rail power supply: MDR-10-24, MDR-10-5, MDR-10-12, MDR-10-15
Manufacturer: MEAN WELL
Manufacturer: MEAN WELL
- Universal AC input/Full range
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- Can be installed on DIN rail TS-35/7.5 or 15
- Built in DC OK active signal
- LED indicator for power on
- No load consumption<0.75W
- 100% full load burn-in test
Price from €11.10 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMDR-10-24DIN rail power supply 10W 24V 0.42AIn stockWarranty: €11.10€13.65Login to check your price MDR-10-24DIN rail power supply 10W 24V 0.42AAvailability:In stockNet price:€11.10 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMDR-10-5DIN rail power supply 10W 5V 2AIn stockWarranty: €11.10€13.65Login to check your price MDR-10-5DIN rail power supply 10W 5V 2AAvailability:In stockNet price:€11.10 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMDR-10-12DIN rail power supply 10W 12V 0.84AIn stockWarranty: €11.10€13.65Login to check your price MDR-10-12DIN rail power supply 10W 12V 0.84AAvailability:In stockNet price:€11.10 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMDR-10-15DIN rail power supply 10W 15V 0.67AIn stockWarranty: €11.10€13.65Login to check your price MDR-10-15DIN rail power supply 10W 15V 0.67AAvailability:In stockNet price:€11.10
Description
- Universal AC input/Full range
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- Can be installed on DIN rail TS-35/7.5 or 15
- Built in DC OK active signal
- LED indicator for power on
- No load consumption<0.75W
- 100% full load burn-in test
Available models:
- 5V: MDR-10-5
- 12V: MDR-10-12
- 15V: MDR-10-15
- 24V: MDR-10-24
Technical Specification
- MDR-10: 10W details
| Model | Output | Tolerance | Ripple & noise | Efficiency | Dimension |
| MDR-10-5 | 5V, 0~2.0A | +/-5% | 80mV | 77% | 22.5x90x100mm |
| MDR-10-12 | 12V, 0~0.84A | +/-3% | 120mV | 81% | 22.5x90x100mm |
| MDR-10-15 | 15V, 0~0.67A | +/-3% | 120mV | 81% | 22.5x90x100mm |
| MDR-10-24 | 24V, 0~0.42A | +/-2% | 150mV | 84% | 22.5x90x100mm |
